CNC Turret Punch Press

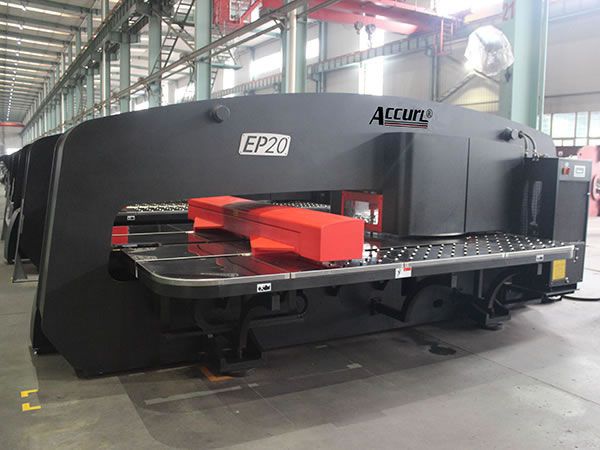

The ACCURL CNC turret punch press is an outstanding combination of performance and cost effectiveness. Our CNC punching machines feature an O-frame design and can work with mild steel sheet with a thickness up to 6.5 mm.

CNC Turret Punch Press

30 stations
The highly engineered mechanical parts in the CNC turret punch press are manufactured according to the highest precision standards. The HS3 electronic stroke control has full control over the speed and stroke of the 30 ton hydraulic punching head.

This turret press is equipped with a thick turret tool holder with 30 stations. It comes standard with 2 auto index stations. Additional auto-indexing stations are optional.

Siemens control
This series of CNC turret punch press comes standard with the Siemens 802D SL operator control system which combines CNC (NC, PLC, HMI) and drive control in a single unit.

Features
1. The T30 series of CNC machine tool is fitted with a 30 station turret tool device.
2. Thismetal fabrication equipment is designed with an advanced CNC device that can configure the entire operation.
3. CNC turret punch presses are fitted with high quality clamps to hold work pieces firmly in place during the metal punching process.
4. This series of metalworking equipment is designed with CE approved safety features.
5. The CNC turret punch has a 30 ton punching force.
6. Deep1500mm throat
7. O-frame for maximum rigidity and precision
8. Thick turret style tooling
9. Automatic sheet repositioning
10. 4 auto index station

Specifications of the CNC Turret Punch Press
Model MVD-HPI-30
Punching Capacity kN 300 300 300 300 300
Max. Machining Sheet (Repositioning) mm 1250 1250 1250 1500 1500
2500 4000 5000 4000 5000
Slide Stroke mm 32 32 32 32 32
Max. Plate Thk mm 6.35 6.35 6.35 6.35 6.35
Max. Punching Dia . mm Φ88.9 Φ88.9 Φ88.9 Φ88.9 Φ88.9
Die Qty. pc 30 30 30 30 30
Punching Accuracy mm ± 0.10 ± 0.10 ± 0.10 ± 0.10 ± 0.10
Slide SPM mm 600/*900 600/*900 600/*900 600/*900 600/*900
Max. Speed m/min 106 106 106 106 106
Frame Straight Straight Straight Straight Straight
O-Type O-Type O-Type O-Type O-Type
Throat Depth mm 1275 1275 1275 1525 1525
Control Axis pc 4 4 4 4 4
Turret Speed r/min 30 30 30 30 30
Max. Punching Dia . Of Rotary Station mm Φ88.9 Φ88.9 Φ88.9 Φ88.9 Φ88.9
Power kw 25 25 25 25 25
Max. Weight kg 156 156 210 210 235
Air Pressure MPa 0.55 0.55 0.55 0.55 0.55
Outline Size (FB×LR×H) mm 5050×2700×2010 5050×4200×2010 5050×5200×2010 5650×4200×2010 5650×5200×2010
Weight t 19.5 20 20.5 21.5 22
