Hydraulic Swing Beam Shear

ACCURL manufactures a hydraulic swing beam shear for cutting of sheet metal with thicknesses between 4mm and 6000mm. The sheet metal shear can handle the large dimensions required in tube and roll forming manufacturing lines. The hydraulic swing beam shear can also be configured for piercing and blanking. We guarantee that ACCURL can provide you with the hydraulic shear that you are looking for.

Hydraulic Swing Beam Shear

Main Features
1. The hydraulic swing beam shear is completely streamlined and meets EU production requirements. The body construction is completed by automated robotic welders and it undergoes a stress relief process with an annealing treatment.
2. The QC12Y series hydraulic shearing machines are produced with a variety of cutting lengths and capacity options.
3. Equipped with a lighting-alignment function, the sheet metal cutting equipment can be quickly and easily adjusted to the right cutting angle. The stroke of the knife beam is adjusted in step-less mode.
4. The integrated hydraulic system leads to more reliable operation and easy maintenance. The hydraulic system is designed by Bosch-Rexroth in Germany.
5. The cutting blade is hydraulically driven with a nitrogen gas accumulator.
6. The entire hydraulic swing beam shear conforms to CE standards including the tiltable front finger guard and optical rear safety guard.
7. High quality shear blades that are easily maintained and replaced.

Standard Designs for the Hydraulic Swing Beam Shear

Rapid and precise blade clearance adjustment with a single handle on the side frame
Multi-edge blades for cutting aluminum, carbon steel, and stainless steel
Cutting line illumination and wire for shadow line cutting
Stroke counter
Quick cutting length adjustment
Hydraulic and electrical overload protection
Squaring arm and front support arms
Bed infill plates with ball transfers
Delta inverter with ball screw and polished rod with 0.01 mm accuracy.

Better Cuttings
Backgauge adjustment according to blade gap
Backgauge retraction feature
Sub-program and programming loop
Sequence repeat function
Auto cutting (Flying cut)

Optional Designs for the Hydraulic Swing Beam Shear
Roller rear supporting rack
Pneumatic sheet supporting system
Table mounted sheet angle cutting gauge
CNC control of plate thickness, backgauge position, and cutting length inputs
GoTo backgauge control

Specifications of the Hydraulic Swing Beam Shear

Model(AC/MS7) QC12Y-4×2500 QC12Y-4×3200 QC12Y-4×4000 QC12Y-6×2500 QC12Y-6×3200 QC12Y-6×4000 QC12Y-6×6000
Cut Thickness mm 4 4 4 6 6 6 6
Cut Thickness mm 2500 3200 4000 2500 3200 4000 6000
Shear Angle Degree 1°30' 1°30' 1°30' 1°30' 1°30' 1°30' 1°30'
SPM min-1 ≥ 22 ≥ 18 ≥ 12 ≥ 16 ≥ 12 ≥ 10 ≥ 7
Back Gauge mm 20-600 20-600 20-600 20-600 20-600 20-800 20-800
Throat Depth mm 85 85 85 145 145 145 140
Main Motor kW 5.5 5.5 5.5 7.5 7.5 7.5 11
Net Weight kg 3460 4280 6600 5140 6220 8520 17000
Outline Size (L×W×H) mm 3100×1430
×1450
3800×1555
×1500
4600×1705
×1600
3150×1500
×1600
3850×1600
×1620
4650×1850
×1700
6780×2450
×2100
Model(AC/MS7) QC12Y-8×2500 QC12Y-8×3200 QC12Y-8×4000 QC12Y-8×5000 QC12Y-8×6000 QC12Y-12×2500 QC12Y-12×3200
Cut Thickness mm 8 8 8 8 8 12 12
Cut Thickness mm 2500 4000 3200 5000 6000 2500 3200
Shear Angle Degree 1°30' 1°30' 1°30' 1°30' 1°16'
SPM min-1 ≥ 12 ≥ 10 ≥ 10 ≥ 8 ≥ 6 ≥ 10 ≥ 9
Back Gauge mm 20-600 20-600 20-600 20-800 20-800 20-800 20-800
Throat Depth mm 145 145 145 300 300 300 300
Main Motor kW 11 11 11 18.5 18.5 18.5 18.5
Net Weight kg 5900 10200 7360 18000 21800 9000 10700
Outline Size (L×W×H) mm 3180×1680
×1700
3880×1830
×1720
4680×1980
×1780
5855×2260
×2100
6880×2260
×2100
3300×2030
×1840
4000×2100
×1940
Model(AC/MS7) QC12Y-12×4000 QC12Y-12×6000 QC12Y-16×2500 QC12Y-16×3200 QC12Y-16×4000 QC12Y-16×6000
Plate 12 8 16 16 16 16
Cut Thickness mm 4000 6000 2500 3200 4000 6000
Cut Thickness mm 1°54' 2°9'
SPM min-1 ≥ 8 ≥ 4 ≥ 9 ≥ 8 ≥ 7 ≥ 4
Back Gauge mm 20-800 20-1000 20-800 20-800 20-1000 20-1000
Throat Depth mm 300 320 315 320 320 320
Main Motor kW 18.5 30 22 22 30 45
Net Weight kg 13800 38000 11100 14300 19700 44000
Outline Size (L×W×H) mm 4800×2270
×2000
6900×2800
×2500
3310×2240
×2000
4030×2390
×2100
4820×2490
×2460
7100×2900
×2650
Model(AC/MS7) QC12Y-20×3200 QC12Y-20×6000 QC12Y-25×2500 QC12Y-25×3200 QC12Y-32×2500 QC12Y-32×3200
Cut Thickness mm 20 20 25 25 32 32
Cut Thickness mm 3200 6000 2500 3200 2500 3200
Shear Angle Degree 2°30' 2°30' 3°30' 3°30'
SPM min-1 ≥ 5 ≥ 4 ≥ 5 ≥ 5 ≥ 4 ≥ 4
Back Gauge mm 20-1000 20-1100 20-1000 20-1000 20-1000 20-1500
Throat Depth mm 320 150 325 325 350 350
Main Motor kW 37 55 37 37 45 45
Net Weight kg 22000 51000 20000 27000 32500 42100
Outline Size (L×W×H) mm 4190×2695
×2300
7100×3500
×3050
3450×2650
×2800
4130×3100
×2800
3550×3100
×2800
4335×3300
×3280
Detailed Pictures

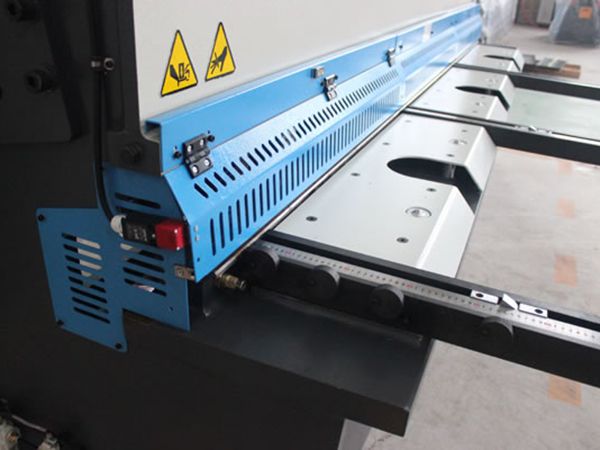

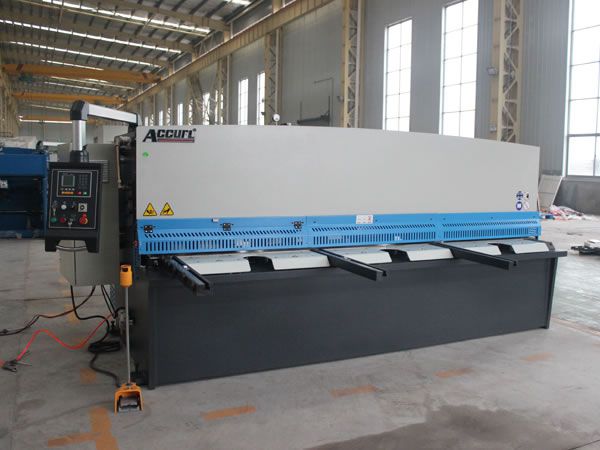

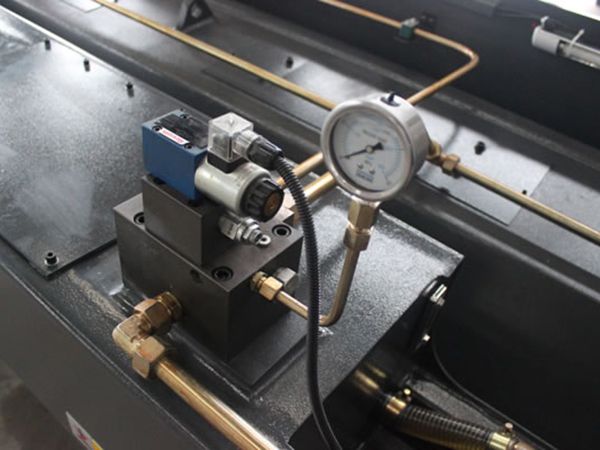

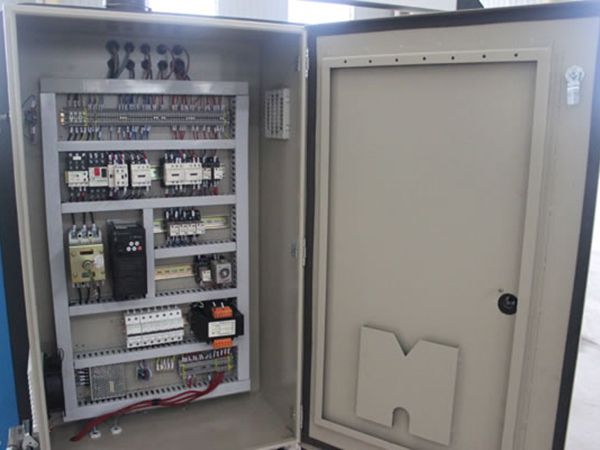

  • Hydraulic Swing Beam Shear
  • Hydraulic Swing Beam Shear
  • Hydraulic Swing Beam Shear
  • Hydraulic Swing Beam Shear
