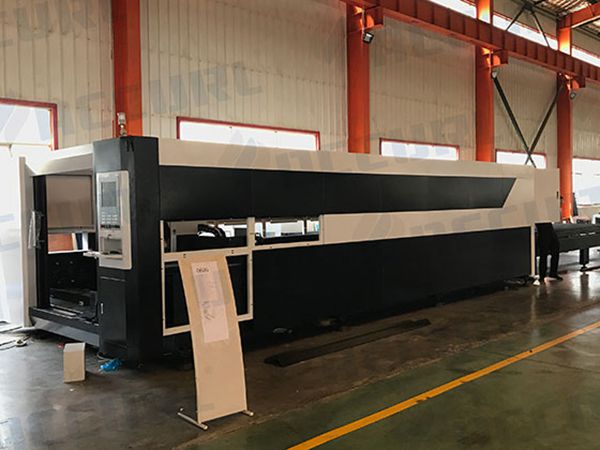

Large Format 6KW IPG Fiber Laser CNC Metal Cutting Machine

ACCURL IPG 6000W fiber laser cutting machine features a fast cutting and energy efficiency, especially when compared to CO2 lasers. With its easy to use structure that requires little to no maintenance, its service is among the highest of fiber lasers, and is globally recognized for its efficiency.

Large Format 6KW IPG Fiber Laser CNC Metal Cutting Machine

New Generation 6Kw Fiber Laser Technology:
1. Low operating cost and energy consumption
2. Globally recognized high performance components
3. Precise cuts and high durability
4. High profit margin
5. Perfect results on variety of material
6. Efficient and precise cuts on thick and thin material

Standard Equipment:
• Germany BECKHOFF CNC Controller
• IPG YLS-6000W Ytterbium Laser Resonator
• Advanced PRECITEC cutting head (with air cross blast)
• Automatic Double Pallet Changer(Shuttle Table)
• Precision Rack & Pinion Drive System (Made in Germany)
• Radan or Lantek CAD/CAM system
• Light source
• Chiller
• 3 lower protective lenses
• 3 Ceramic Nozzle Adapters
• Auto-calibrated nozzle system
• Smart Slag Collection System/ Chip Conveyor
• Fiber Beam Transmission System (Fiber Cable)
• Operates with both N2 and O2 (cutting) gases
• Home Position Alignment System
• Auxiliary Gas Selector
• Auto Reflection Warning
• Working Lights
• 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)

Optional Equipment:
• Automatic beam centering system.
• Linear motor technology
• Laser Safety Barrier
• Precitec cutting head
• Automatic sheet metal loading and unloading system.
• Compressor
• 1KW – 2KW – 3KW – 4KW – 5KW – 6KW – 8KW – 12KW Laser power options available.

Technical Specification:
Laser power 6000W IPG Fiber Laser Cutting Machine
Laser source Germany IPG fiber laser resonator
Processing surface (L × W) 3000mm x 1500mm
CNC control BECKHOFF (Germany)
Laser head Switzerland Raytools
Power supply AC380V±5% 50/60Hz (3 phase)
Total electric power 35KW
Position accuracy X, Y and Z axle +0.02mm
Repeat position accuracy X, Y and Z axle +0.01mm
Maximum position speed of X and Y axle 150m/min
Acceleration 2.5G
Max load of working table 1500kg
Drawing programming mode AI, DWG, PLT, DXF format import directly
Machine weight 11500Kgs
*** Note: As products are constantly updated, please contact us for latest specifications.***
Cutting Thickness Limit:
Material Cutting Thickness Limit
Carbon steel 30mm
Stainless steel 16mm
Aluminum 12mm
Brass 8mm
Copper 8mm
Main Parts:
Article Name Remark
Fiber laser resonator IPG (Germany)/6000W
Servo motor and driver DELTA (Taiwan)
Ball screw rod HIWIN (Taiwan)
Liner guide HIWIN (Taiwan)
Gear rack YYC (Taiwan)
Laser head PRECITEC (Germany)
Chiller TONG FEI (China)
Controller BECKHOFF (Germany)
Gas Proportional valve SMC (Japan)
Reduction gear box APEX (Taiwan)
Detailed Pictures
  • Germany PRECITEC Spain FAGOR Servo motor and drive Germany PRECITEC Laser Cutting Head
  • IPG YLS-6 kW Laser power from Germany IPG YLS-6 kW Laser power from Germany
