50 Ton CNC Sheet Metal Turret Punching Machine

50 Ton CNC Sheet Metal Turret Punching Machine

Complex Multi-Tools Auto Index Technology
High Performance

By offering the choice between our MAX-series machines and the T-series classical thick-turret style, Accurl proudly offers a full range of punching solutions for both performance and price range requirements.

ACCURL®MAX-T Series punch press offers an O-frame and features an excellent rigidity and high geometric precision. Its capacity reaches up to 30 metric tons and is capable of working with mild steel thicknesses up to 6.5mm.

Advanced Hydraulic System
• The strictly engineered mechanical parts in the H+L Hydraulic ram are manufactured according to high precision standards. The HS3 electronic stoke control controls the speed and stroke of the 30 ton hydraulic punching head.
• A uniquely designed machine structure ensures less preventive maintenance.

Turret Structure with Multi-Tools
• The auto indexable stations have a dual lead worm structure. The worms are custom machined in pairs and are highly accurate. The worm gear’s side clearance can be controlled under 0.001mm and can be adjusted for wear.
• The turret comes with 4 main layouts, and the number of stations ranges from 32 to 52, and up to 4 indexing stations.
• Permanently engaged auto index drive system reduces errors and avoids downtime.
• Each station can be fitted with various brand tools, such as Mate and Wilson.

• 32 Stations 2 Auto index:
ACCURL entry level turret offers a full set of tooling with two auto indexing stations.

• 32 Stations 3 Auto index:
With one flex station, the 32 station turret can be upgraded with an additional auto index D station.

• 42 Stations 4 Auto index:
ACCURL’s most flexible design comes with four auto indexing stations to offer the most advanced material processing capabilities.

CE-Approved
When designing the T-series, the safety aspect has been specifically taken care of. This is done by using a CE certified optical detection system placed around the machine working area.

Standard Equipment:
• FANUC Series Oi-PO CNC Control System
• automatic repositioning clamps and loading switches.
• Tool lubricating system (Airblow).
• Free standing control panel.
• Control with foot pedal.
• 1 software (Lantek or RADAN software).
• User manual and maintenance catalogue.
• 15 x A station 1/2’’ fixed 1,6-12,7 mm round
• 12 x B station 1-1/4’’ fixed 12,8-31,7 mm round
• 2 x C station 2’’ fixed 31,8-50,8 mm round
• 1 x D station 3-1/2’’ fixed 50,9-88,9 mm round
• 3 x D station 3-1/2’’ index 50,9-88,9 mm round
• Digital oil temperature indicator.
• Software for using wheel and forming tools.
• Scrap box.
• Chain protection around the machine (safety system).
• Hydraulic oil cooling system.

Optional Equipment:
• Notching and forming tools for various dimensions and forms.
• Light barrier (for CE standard machines).
• Additional sheet holding clamps.
• Multi tools of 3,6,8 stations.
• Adaptors for various stations (B, C, D).
• Special coated tools for notching stainless materials (TIN, TICN, TICN Plus, MOVIC).
• Work chute.
• Stainless steel table with ball bearing support.

Specification
Item Unit SF-T 50
Runching Capacity Ton 50
X Traverse Length mm 2490±10
Y Traverse Length mm 1525±10
Max sheet Size mm 1525×4980
Max sheet Thickness mm 6.35
Max Mass of Material kg 110
X Axis Traverse Speed M/min. 80
Y Axis Traverse Speed M/min. 70
Max Traverse Speed M/min. 105
Punching Speed at 25mm pitch hits/min. 250
Nibbling Speed (stroke length 4mm, pitch 1mm) hits/min. 360
Tool Type Thick turret
Max Punching Diameter mm 88.9
Number of Tool Stations 34
Numer of Auto Index Stations pcs(type) 2(B)
Turret Rotating Speed rpm 30
Auto Index Rotating Speed rpm 50
Ram Stroke Distance mm 0-31
Working Table Brush+Ball
Number of Sheet Clamps pcs 3
Power Supply KVA 26
Air Supply NL/min 250
Air Pressure bar 5
Oil Tank Capacity Litre 180
Size of Control Cabinet mm 1100*535*1980
Number of Controllable Axis Axis 4+1
RAM Memory KB 512
Serial Interface RS232 / RJ45 / PCMCIA
Punching Precision mm ±0.1
• Specifications are subject to change without prior notice.
• Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
• Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.

Detailed Pictures

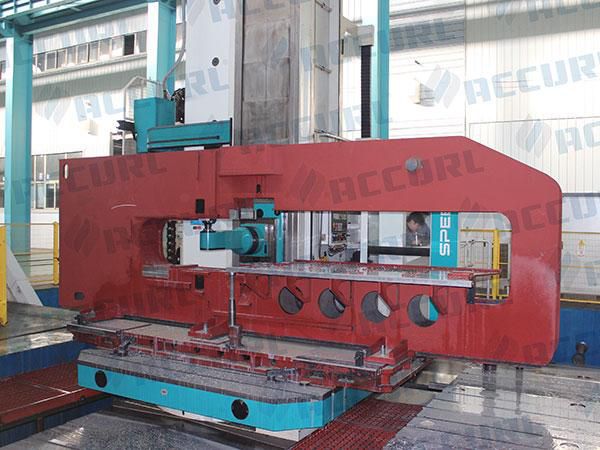

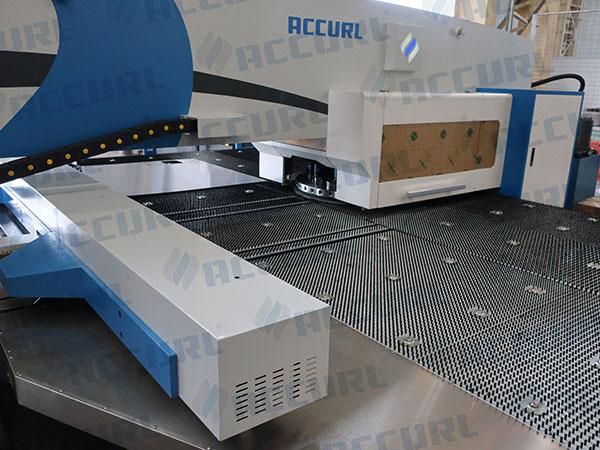

  • Closed O Shape Frame Structure for CNC Punch pressClosed O Shape Frame Structure for CNC Punch press

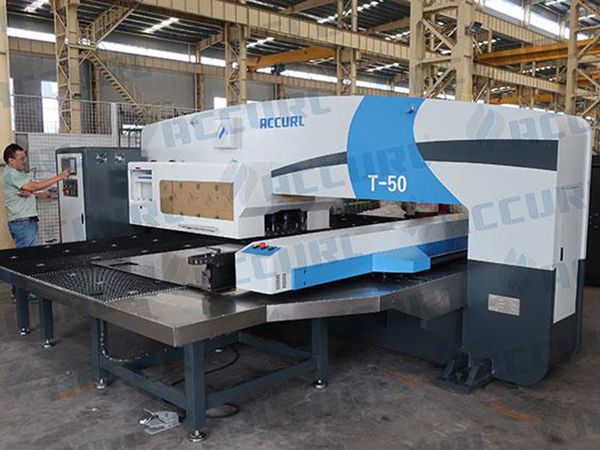

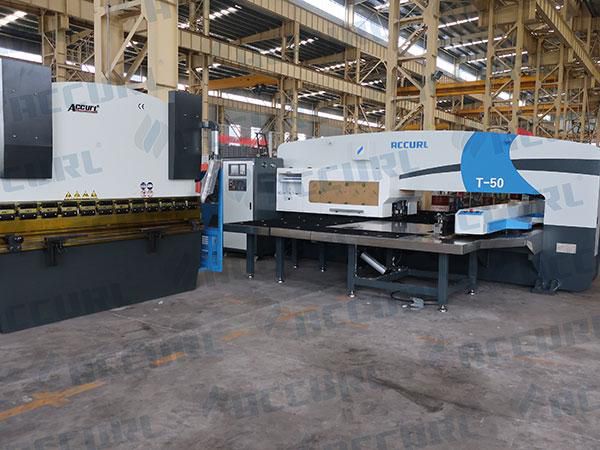

  • CNC Turret Punch Press Machine MAX-T-50 ton for SaleCNC Turret Punch Press Machine MAX-T-50 ton for Sale
  • Heavy-duty Clamp for accurl CNC Punch pressHeavy-duty Clamp for accurl CNC Punch press

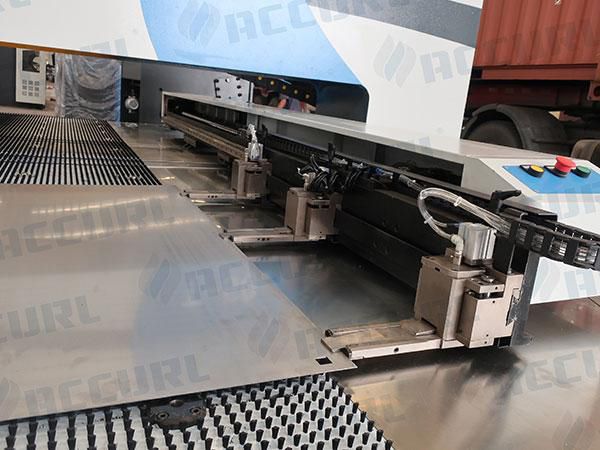

  • Repositioning clamps and loading switchesRepositioning clamps and loading switches

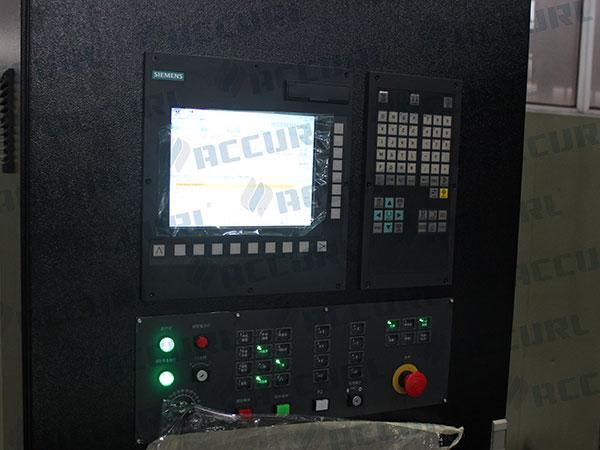

  • SIEMENS 840D CNC Controller System for Accurl CNC Punch pressSIEMENS 840D CNC Controller System for Accurl CNC Punch press

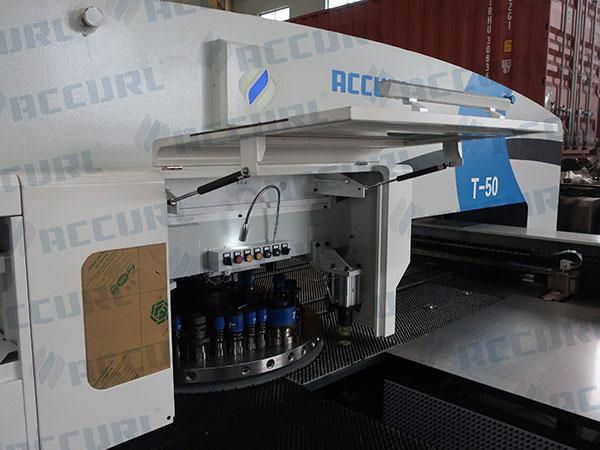

  • Turret with 32 StationsTurret with 32 Stations
