Robotic Sheet Metal Press Brake

Robotic Bending Solutions:
ACCURL press brakes can be used in a robotic cell, and either completely robotic, or simultaneously with a robot and a human operator alternating usage of the CNC machines.

Thanks to the ACCURL bending robot and automatic loading/unloading devices, the cell with two levels of automation - process and operation - is a reliable solution for unattended production, even at night.

All risks associated with part handling during bending are faced by the robot and not by the operator.

Robotic Sheet Metal Press Brake
Specification
Model JPR16 JBR30 JBR110
Instructions Fast, high dynamics Flexible, suited for small-sized part handling Versatile, suited for medium-sized part handling
Payload 16 Kgs 30 Kgs 110 Kgs
Max. range of action 1610mm 2230mm 3100mm

Connections:
The ACCURL Robotic bending cell system can be equipped with different types of loading and unloading connections, depending on the client's production requirements.
• Loader from a pre-centred pack.
• Loader from a Cartesian feeder in masked time.
• Cartesian feeder with controlled axes.
• Feeder/unloader for connection in line with ACCURL systems.
• Unloader.
• Carousel unloader.
• Roller-surface unloader for pallets.
• Roller-surface unloader for pallets and crates.
• Un-intrusive machine integration with sensors to back gauge fingers and bending beam which follow the programmed sequence of the Accurl press brake.

Detailed Pictures

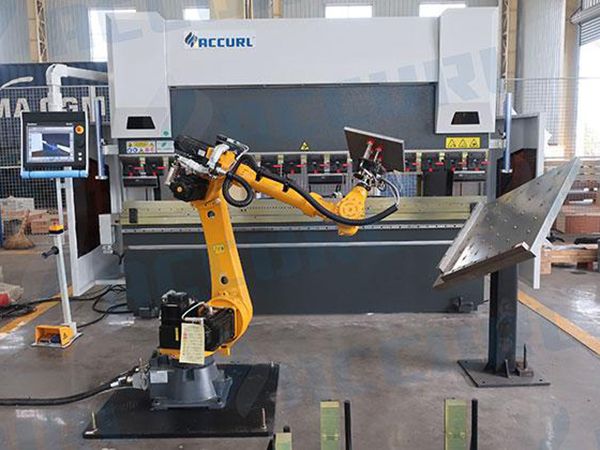

  • Bending robotic cell for press brakeBending robotic cell for press brake

AUTO CONFIGURATION:
Loading with Cartesian robot and highly autonomous multi-purpose unloader.

AUTO CONFIGURATION
