30 Ton Servo Drive CNC Turret Punch Press

30 Ton Servo Drive CNC Turret Punch Press

The Perfect CNC Turret Punching Machine
High Performance

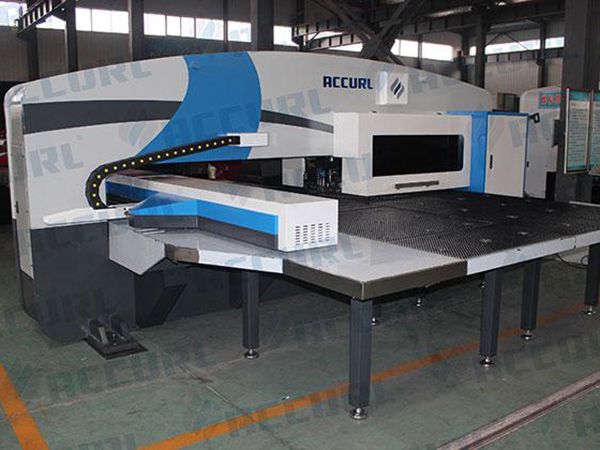

With Accurl’s 30 or 50 ton high speed servo hydraulic punching head, sheet dimensions 2500 x 1300 mm and rotation axis for all tools, the MAX-SF is the perfect CNC turret punching machine. The large fully-brushed sheet support tables and the standard repositioning cylinders, allowing for an easy processing of standard sheet sizes.

Flexibility in Multi-Tools
ACCURL®MAX-SF Series CNC Punch Press Machine is a newly developed multi-index tool turret punch press and is equipped with an advanced servo hydraulic system. Accurl MAX SF Series CNC Punching machines provide the fastest, flexible and most reliable punch press satisfying your expectation of fast and precise sheet metal works.

Advanced Servo Hydraulic System
• Advanced German made Schneider hydraulic servo system with pressure valve to precisely control the speed, volume and pressure of oil flow.
• To control the RAM stroke distance on both ends, hence the height and depth of each punch becomes programmable with 0.1mm accuracy.
• Uniquely designed machine structure ensures less preventive maintenance.

Complex Multi-Tools Auto Index Technology
• Synchronized dual servo motors for controlling the auto index functions.
• 2 D Auto Index Stations for Multi Tools, either 3 B or 8 A.
• Capable of indexing each individual tool within the 3B and 8A Multi Tool set.
• 24 various size stations including 4 Auto Index stations Multi Tools. Therefore, a total of 24 to 52 tools can be employed.
• Capable of running wheel, marking, grooving and forming Tooling.

Standard Equipment
• Accurl Direct Drive servo punch system
• Fanuc CNC and high precision absolute encoder, dynamic, brushless alfa series servo motors
• 3 automatic repositioning clamps and loading switches.
• FANUC Series Oi-PO CNC Control System
• Aluminum workholder
• Tool lubricating system (Airblow).
• Free standing control panel.
• Control with foot pedal.
• Tools stuck safety system
• 1 software (Lantek or RADAN software).
• 24 or 42 turret stations
• Digital oil temperature indicator.
• Software for using wheel and forming tools.
• Sheet jumping switches
• Scrap box.
• Chain protection around the machine (safety system).

Optional Equipment
• Notching and forming tools for various dimensions and forms.
• Light barrier (for CE standard machines).
• Additional sheet holding clamps.
• Multi tools of 3,6,8 stations.
• Adaptors for various stations (B, C, D).
• Special coated tools for notching stainless materials (TIN, TICN, TICN Plus, MOVIC).
• Work chute.
• Stainless steel table with ball bearing support.

Specification
Item Unit MAX-SF-30T
Punching Capacity Ton 30
X Traverse Length mm 2490±10
Y Traverse Length mm 1250±10
Max Sheet Size mm 1250x4980
Max Sheet Thickness mm 6.35
Max Mass of Material kg 110
X Axis Traverse Speed m/min 80
Y Axis Traverse Speed m/min 70
Max Traverse Speed m/min 105
Punching Speed at 25mm pitch hits/min. 360
Nibbling Speed (stroke length 4mm, pitch 1mm) hits/min. 650
Tool Type Thick turret
Max Punching Diameter mm 88.9
Number of Tool Stations 34
Numer of Auto Index Stations pcs(type) 2B
Turret Rotating Speed rpm 33
Auto Index Rotating Speed rpm 100
Ram Stroke Distance mm 0-31
Working Table Brush+Supporting Ball Set
Number of Sheet Clamps pcs 3
Power Supply KVA 24
Air Supply NL/min 250
Air Pressure bar 6
Size of Control Cabinet mm 1200 × 600 × 1900
Number of Controllable Axis Axis 4
RAM Memory KB 512
Serial Interface RS232 / RJ45 / PCMCIA
Punching Precision mm ±0.1
Machine Dimension (L × W × H) mm 4687 × 5102 × 2385
Net Weight (approx.) kgf 13000
• Specifications are subject to change without prior notice.
• Acceleration / deceleration rate of X / Y-axis are dependent on weight of materials.
• Punch speed depends on processing conditions, stroke length, acceleration / deceleration of axes speeds.

Detailed Pictures

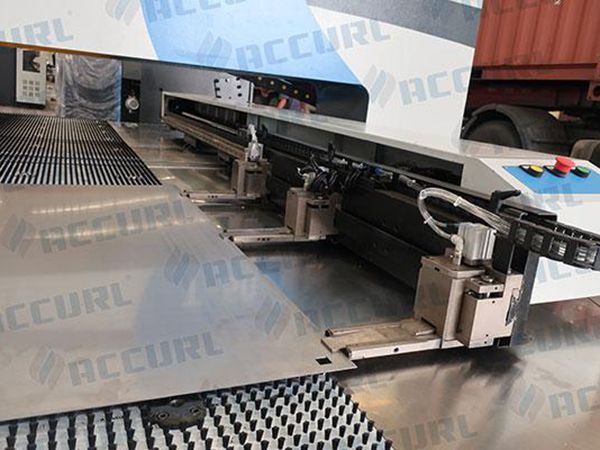

  • Automatic repositioning clamps and loading switchesAutomatic repositioning clamps and loading switches

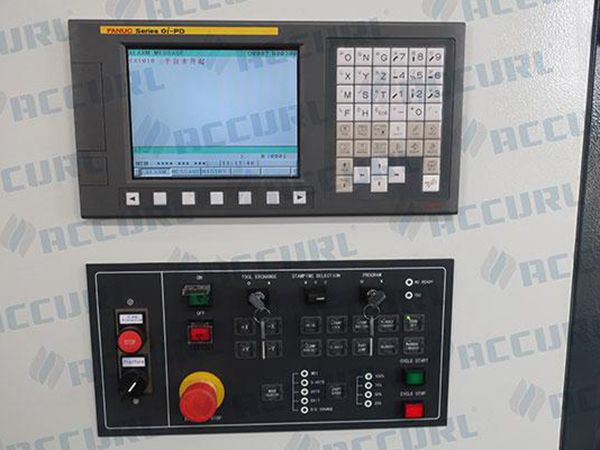

  • FANUC Series Oi-PO Control System for CNC Punch PressFANUC Series Oi-PO Control System for CNC Punch Press
  • Heavy-duty Clamp for Accurl CNC Punch pressHeavy-duty Clamp for Accurl CNC Punch press

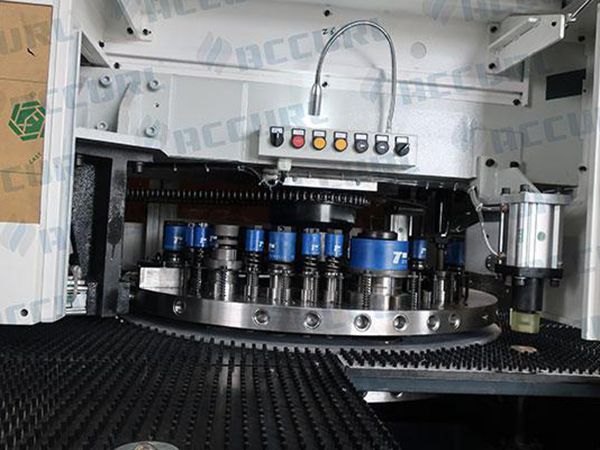

  • Turret with 32 StationsTurret with 32 Stations
