1000W IPG Fiber Laser Sheet Metal Cutting Machine

Incredibly fast and flexible, the ACCURL sheet metal IPG 1000w fiber laser cutting machine is ideal for ultra-high speed cutting of thin sheet materials. This equipment has the ability to cut a wide array of ferrous and non-ferrous metals while maintaining low cost operation.

1000W IPG Fiber Laser Sheet Metal Cutting Machine

Features
1. The machine structure's frame has been welded using a CO2, high temperature annealing treatment in order to ensure normal operation with no deformity.
2. Imported high precision ball screw transmission and high precision linear guide rail
3.Japanese servo motor and driver system, imported high-rigidly precision gearbox
4.Equipped with auto-lubrication device with dust removal and smoke extractor system
5.Modular structure laser, high performance and no maintenance
6. Professional laser cutting software, easy to operate, design all kinds of graphs, texts easily by your will to cut accessories

Standard Equipment
• IPG YLR-1000W Ytterbium Laser Resonator
• Linear Driven X, U and Y Axes
• High Rigid Frame
• Empower or FAGOR CNC Controller
• Precitec Cutting Head
• Lantek Software
• Shuttle Table
• Chiller Unit
• Proportional Gas and Piping System
• Dust Filter
• Compressor
• Conveyor for Scraps

Fiber Laser Cutting Machine Applicable Materials
Cutting stainless steel, carbon steel, mild steel, alloy steel, galvanized steel, silicon steel, spring steel, titanium sheet, galvanized sheet, iron sheet, inox sheet, aluminum, copper, brass and other metal sheet, metal plate, metal pipe and tube, and more.

Technical Specification:
Laser power 1000W IPG Fiber Laser Cutting Machine
Laser source Germany IPG fiber laser resonator
Processing surface (L × W) 3000mm x 1500mm
CNC control Shanghai FISCUT CypCut
Laser head Switzerland Raytools
Power supply AC380V±5% 50/60Hz (3 phase)
Total electric power 14KW
Position accuracy X, Y and Z axle +0.03mm
Repeat position accuracy X, Y and Z axle +0.02mm
Maximum position speed of X and Y axle 72m/min
Acceleration 1g
Max load of working table 1000kg
Drawing programming mode AI, DWG, PLT, DXF format import directly
Machine weight 5T
*** Note: As products are constantly updated, please contact us for latest specifications. ***
Cutting Thickness Limit:
Material Cutting Thickness Limit
Carbon steel 12mm
Stainless steel 6mm
Aluminum 4mm
Brass 3mm
Copper 3mm
Main Parts:
Article Name Remark
Fiber laser resonator IPG (Germany)/1000W
Servo motor and driver DELTA (Taiwan)
Ball screw rod HIWIN (Taiwan)
Liner guide HIWIN (Taiwan)
Gear rack YYC (Taiwan)
Laser head RAYTOOLS (Switzerland)
Chiller TONG FEI (China)
Controller FISCUT (China)
Gas Proportional valve SMC (Japan)
Reduction gear box APEX (Taiwan)
Detailed Pictures
  • Framework by heat treatmentFramework by heat treatment
  • IPG 1000w Fiber Laser PowerIPG 1000w Fiber Laser Power
  • Laser Cutting headLaser Cutting head

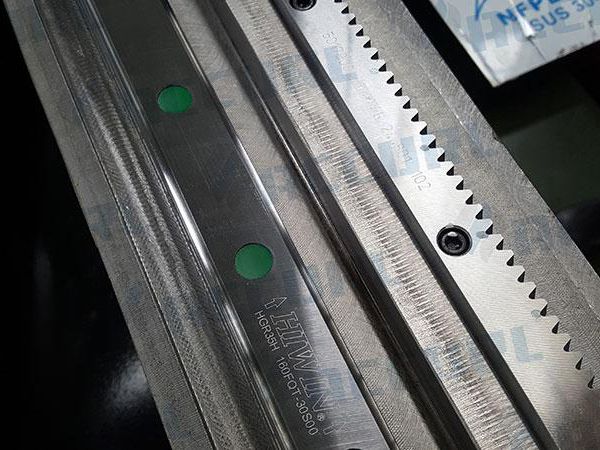

  • Linear guide and Rack Linear guide and Rack

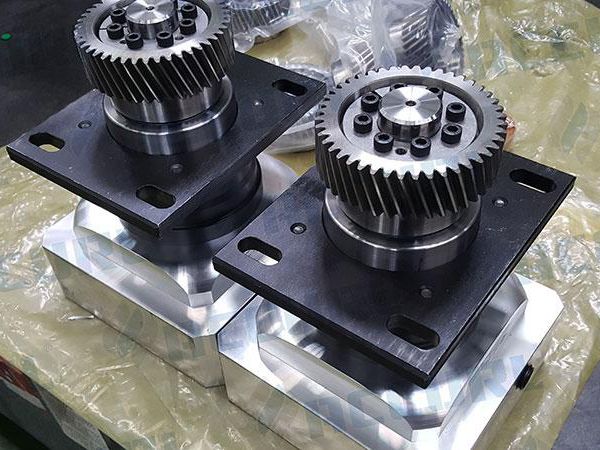

  • Shimpo reduction gears from Japan Shimpo reduction gears from Japan
