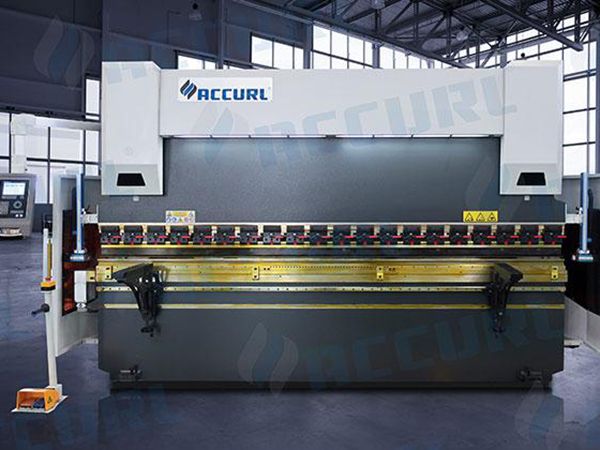

3-Axis CNC Sheet Metal Press Brake

ACCURL® SMART-FAB B Series CNC press brakes bending machines are perfect for forming small parts with low operating costs. Using a synchro CNC 3 axis control capability, they operate just like a larger CNC press brake.

Stronger, faster and deeper bends:
ACCURL® SMART-FAB Series CNC press brake machines allow operators to increase their production capacity, and prevent production time loss.

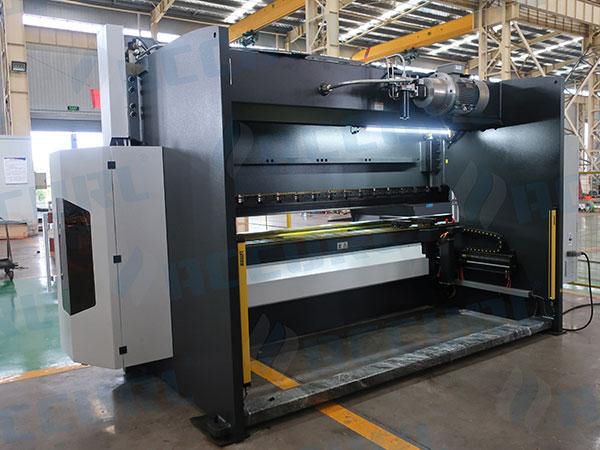

3-Axis CNC Sheet Metal Press Brake

General Features:
● Chrome coated cylinders are machined with 0.001 mm precision and pistons are specially hardened.
● Original clamps are user friendly and machined with high precision.
● Front support arms are able to be slid along the machine length, and are easy to adjust.
● Compact Bosch-Rexroth hydraulics are produced according to CE standards.
● Two photocells on sides for rear guard.
● Fast tool tightening.
● Optic linear scales are sensitive up to ± 0,01 mm.
● Synchronized working cylinders will give you the best bending result with its perfect repeatability ratio.
● 2 axis ultra-strong back gauge system (X=800 mm and R), with ± 0,01 mm. repeatability, moves along rails and ball screw. The bending length is controlled using a CNC controller and foldable back gauge fingers for reverse bending applications.
● Multifunctional and highly programmable, DELEM DA52S CNC controller.
● SIEMENS/SCHNEIDER electrical system.
● Automatic axis referencing when machine is turned on.
● Side guard meets CE standard regulations.

Standard Equipment:
● Height adjustable and movable sliding front support arms.
● DELEM DA52s CNC controller with PC-Profile-T software.
● Promecam easy clamping system.
● 410 mm throat depth.
● 3 plus 1 axis CNC:
-Y1, Y2 precision ram positioning.
-X precision servo-driven back gauge.
-Manually adjustable R, Z1, Z2-axis.
-CNC motorized wave crowning.
● 2 back gauge fingers
● Covers for cylinders and top beam
● Top and bottom tools are surface hardened by special treatment.
● CNC controlled strong X=800 mm back gauge
● The foot pedal is produced according to CE standards and is suitable for single and multiple bends.
● 2 photocells are placed facing each other for rear guards.
● Pre-adjusted electrical requirements based on customer's geographical area.
● Electrical panel with cooling system designed to meet CE standards & composed of automation and electrical equipment with SIEMENS branding.

Specification
Model(SMART FAB) B1560 B2580 B32110 B32135 B32175 B40175 B32220
Bending force KN 600 800 1100 1350 1750 1750 2200
Bending Length mm 1500 2500 3200 3200 3200 4200 3200
Between Columns mm 1100 2060 2700 2700 2700 3700 2700
Daylight mm 405 405 430 430 430 430 430
Slide Stroke mm 200 200 200 200 200 200 200
Throat Depth mm 370 400 400 400 400 400 400
Bolster Width mm 80 80 100 100 100 100 140
Down Speed mm/min 200 200 180 180 160 160 160
Pressing Speed mm/min 8 8 10 10 10 10 10
Return Speed mm/min 180 180 150 150 150 150 140
Back Gauge Stroke mm 500 600 800 800 800 800 800
Outline Size L mm 1825 2825 3500 3550 3500 4500 3500
W mm 1650 1650 1650 1650 1650 1650 1730
H mm 2300 2350 2650 2700 2700 2750 2900
Weight kg 4600 5600 8000 9500 10000 12000 13200
Detailed Pictures

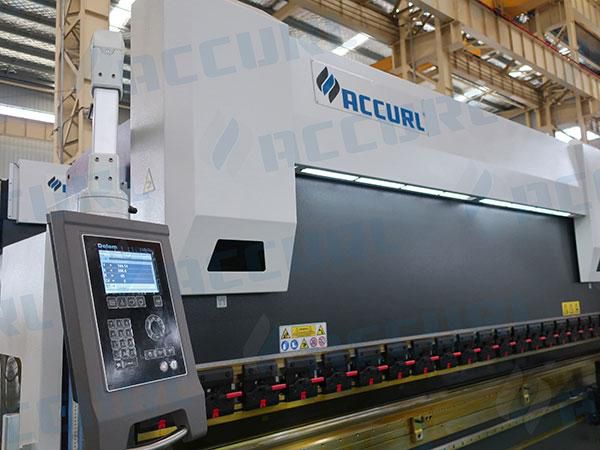

  • DELEM DA52s CNC SystemDELEM DA52s CNC System

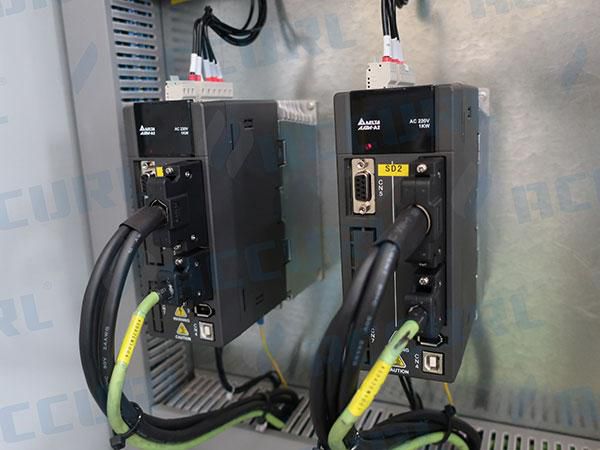

  • Delta Servo drive for CNC back gaugeDelta Servo drive for CNC back gauge

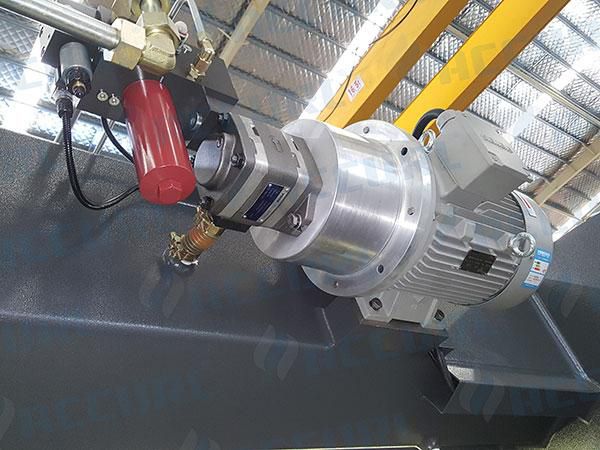

  •  Hydraulic pump from Germany VOITH Hydraulic pump from Germany VOITH

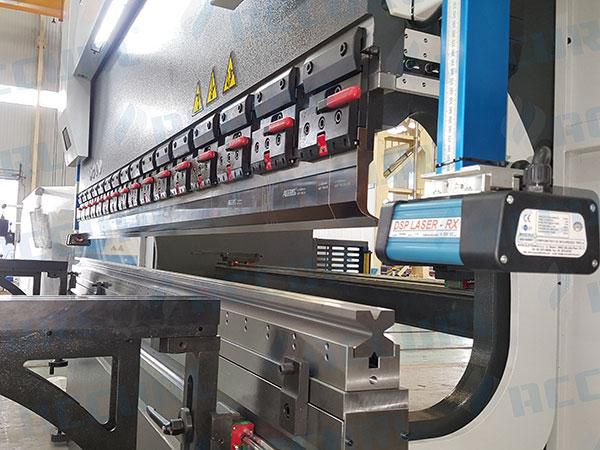

  •  Machine back safety light curtain Machine back safety light curtain
