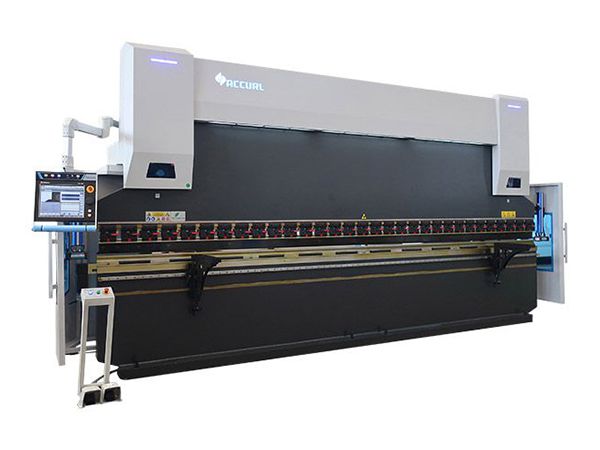

6000mm 400T CNC Press Brake, with DA66T System
6000mm 400T CNC press brake is integrated with DELEM DA66T 3D CNC control system for increased working efficiency, and a laser guarding system for high safety during the bending process.
| Model (GENIU) | S1240 | S25110 | S32135 | S32220 | S40135 | S40220 | S40320 |
| Bending length(mm) | 1250 | 2500 | 3200 | 3200 | 4000 | 4000 | 4000 |
| Pressing force(tons) | 40 | 110 | 135 | 220 | 135 | 220 | 320 |
| Distance between side frames(mm) | 950 | 2100 | 2700 | 2700 | 3300 | 3300 | 3300 |
| Maximum opening(mm) | 380 | 430 | 430 | 460 | 430 | 460 | 560 |
| Maximum stroke(mm) | 160 | 200 | 200 | 200 | 200 | 200 | 300 |
| Throat depth (only if C-Frame) | 320 | 400 | 400 | 400 | 400 | 400 | 400 |
| Closing speed(mm/s) | 180 | 200 | 200 | 180 | 180 | 165 | 160 |
| Maximum working speed*(mm/s) | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Return speed(mm/s) | 150 | 160 | 160 | 150 | 160 | 150 | 125 |
-
-

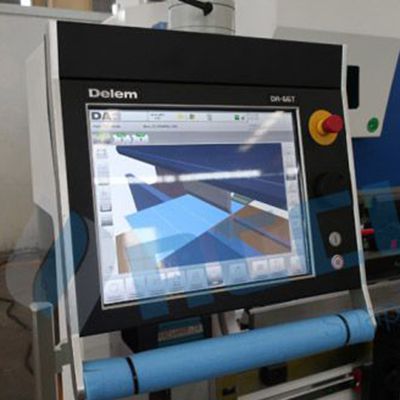

DELEM DA66T 3D CNC control system
DELEM DA66T 3D CNC control system DA66T software maximizes machine efficiency and production output of press brakes. The Profile T software facilitates offline programming and simulation of the bending process. Production preparation, make ability and tooling verification, operator training, adding notes for production and many other functions can be carried out offline.
-
-

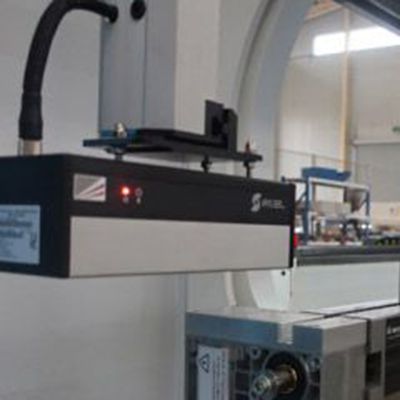

Laser guarding system
LazerSafe LZS-LG-HS guarding system offers a highly effective solution for both operator safety and machine productivity. Designed for use with Lazer Safe's PCSS A Series, the Lazersafe is category 4 compliant and meets the world's most demanding international safety standards (with integrated CE Certified Category 4 Safety Controller).
