Waterjet Cutting Machine

Waterjet Cutting Machine

ACCURL 3D 5 Axis Waterjet CNC Machine | Water Jet Cutting Stainless Steel | High Pressure Waterjets

The ACCURL® abrasive water jet machine is a high-pressure waterjet machine that utilizes straight water cutting or abrasive waterjet cutting to cut several types of material. The ACCURL® is a heavy-duty precision, ground ball screw designed system for maximum precision and rigidity.

The ACCURL® will cut material such as aluminum, armor plate, brass, carpet, copper, glass, granite, leather, marble, mild steel, plastic, stainless steel, stone, tile, titanium. It makes use of the high pressure water jet to cut materials of thicknesses up to 8".

Features
1. No heat-affected zone
2. No mechanical stresses
3. Very narrow kerf
4. No need for secondary operations
5. Smooth surface
6. Can cut various materials
7. Can process extremely detailed parts
8. Minimal loss of material
9. Environmentally friendly

Advantages
The fast, efficient, and precise ACCURL® Center provides top performance in waterjet machining of complex parts from many materials. From simple metals to complex composites, the 4' 7” square cutting area of the proven is ideal for rapid prototyping and just-in-time manufacturing of small to medium-sized parts. With simple fixation and easy access to the cutting table, the setup time is significantly reduced, increasing productivity and profitability.

Technical Specifications:
Model MAX-WJ-1212D MAX-WJ-2515D MAX-WJ-3020D
Working table mm 1200 x 1200 2500 x 1500 3000 x 2000
X-axis Stroke mm 1250 2550 3050
Speed m/min 0~15 0~15 0~15
Y-axis Stroke mm 1220 1520 2050
Speed m/min 0~15 0~15 0~15
Z-axis Stroke mm 200 200 200
Speed m/min 0~12 0~12 0~12
Control accuracy mm ± 0.01 ± 0.01 ± 0.01
Cutting accuracy mm ± 0.01 ± 0.01 ± 0.01
High pressure system Max. pressure Mpa 380 380 420
Power Kw 37(50HP) 37(50HP) 37(50HP)
Total electric power KW 38 38 38
Max. load of working table Kgs 1000 1000 1000
Format supported AI, PLT, DXF, etc.
Machine weight Kgs 2550 4350 5650
Outside dimension mm 2050x1850x1850 4050x2250x1850 4050x2250x1850
Detailed Pictures

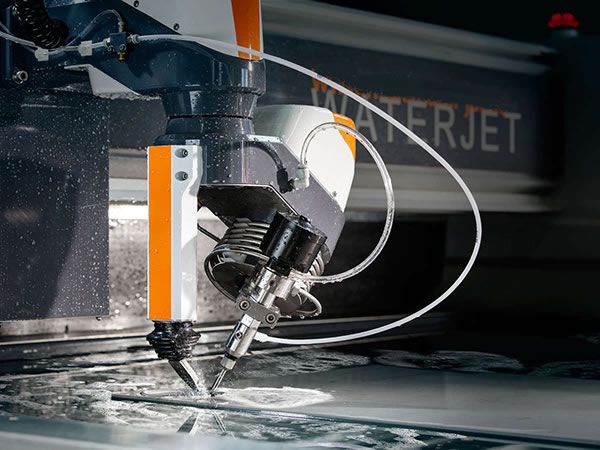

  • Waterjet Cutting Machine

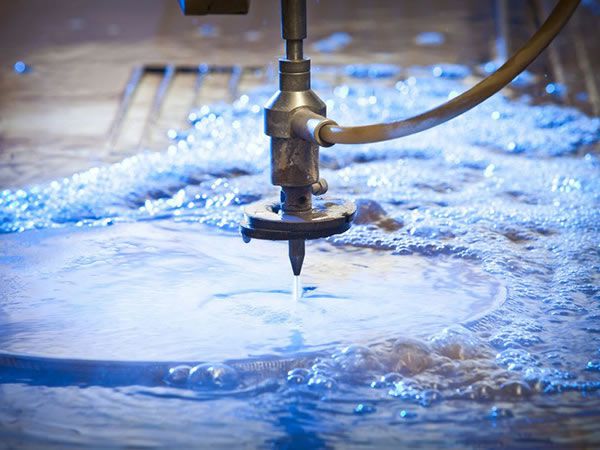

  • Waterjet Cutting Machine

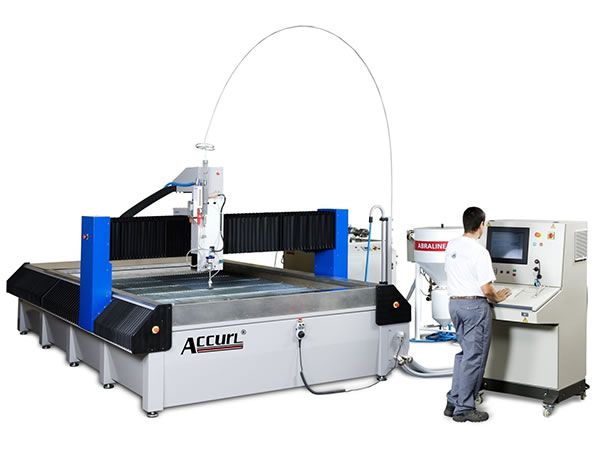

  • Waterjet Cutting Machine
