NC Hydraulic Press Brake WC67Y Series

NC Hydraulic Press Brake WC67Y Series

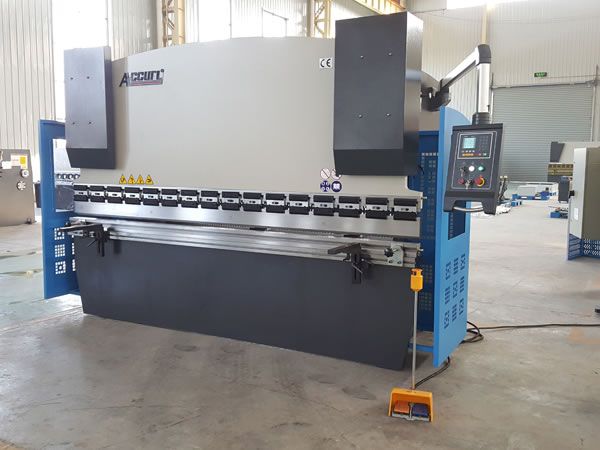

ACCURL produces a line of high power and high efficiency hydraulic press brakes that are guaranteed to perform precise sheet metal bending jobs for your fabrication purposes. The WC67Y series of sheet metal machinery is the perfect solution for simple yet powerful metal working operation.

Request a Quote

Features

The hydraulic press brake is completely streamlined and meets EU production requirements. The body construction is completed by automated robotic welders and it undergoes a stress relief process with an annealing treatment.

The bending brake employs an integrated hydraulic system that is reliable and easy to maintain designed by Bosch-Rexroth in Germany.

Work pieces are bent with maximum precision thanks to the sheet metal bending machine's mechanical synchronous mechanism and complex compensator.

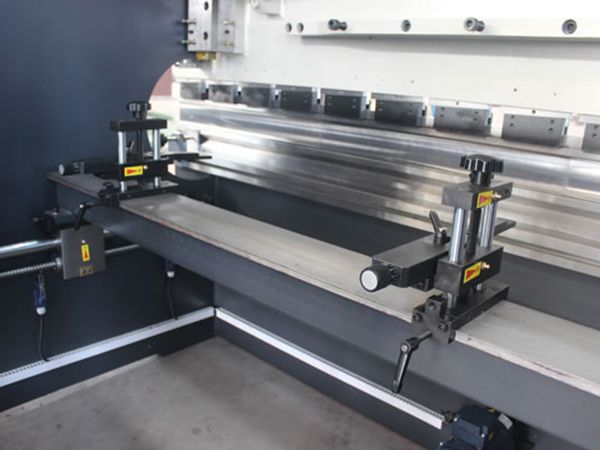

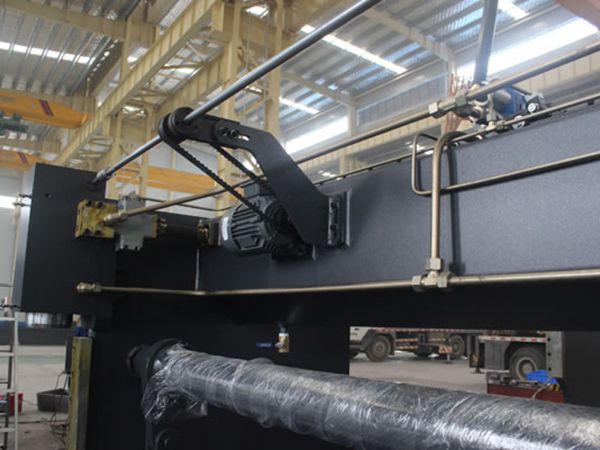

The stroke and distance of the metal bender's backgauge is automatically adjusted by the motor and can be adjusted by hand as well. The adjustments are displayed with digital meters.

Inch, single, and continuous operation modes are designed for the metal forming machine to be controlled using time relays.

A Safety barrier and electric interlocker are designed for the hydraulic press brake to ensure maximum operation safety.

Standard Designs for the Hydraulic Press Brake

The brake press is fitted with intermediate upper clamps to prevent wedging

Plate support arms

Powered adjustment of axis depth

Backstop

Light guards

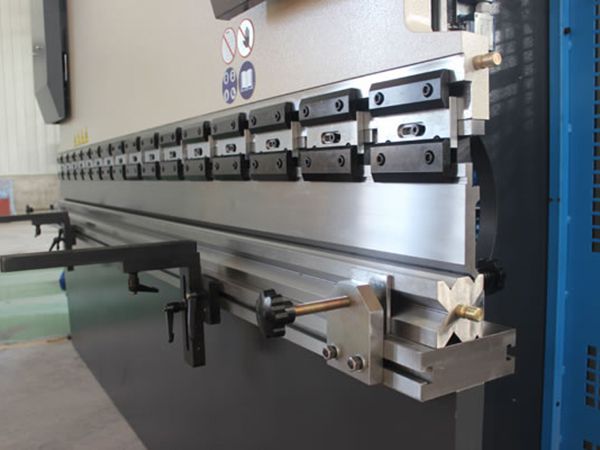

Top and bottom tooling

Estun E21 NC control

German Bosch-Rexroth hydraulic system

Telemecanique/Schneider Electric components

Hydraulic and electrical overload protection

Squaring arm and front support arms

Delta inverter with ball screw and polished rod with 0.05 mm accuracy.

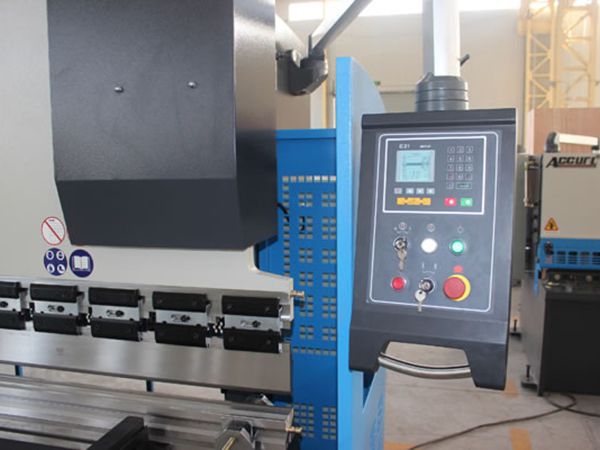

Estun E21s NC Control System for the Hydraulic Press Brake

Monochrome LCD box panel

Integral factor freely programmable

Automatic positioning control

Spindle offset allowance

Internal time relay

Stock counter

Backgauge position display with 0.01mm resolution

Specifications

Model(WC67Y/MB7)		40T/2000	40T/2500	63T/2500	80T/2500	80T/3200	80T/4000	100T/2500	100T/3200
Bending Capacity	KN	400	400	630	800	800	800	1000	1000
BendingLength	mm	2000	2500	2500	2500	3200	4000	2500	3200
Between Columns	mm	1650	2000	2000	1990	2600	3350	1850	2550
Throat Depth	mm	200	200	250	280	280	280	320	320
Slide Stroke	mm	100	100	100	100	100	100	130	130
Stroke Adjustment	mm	80	80	80	80	80	80	100	100
Max. Shut Height	mm	330	330	340	360	360	360	390	390
SPM	min-1	≥ 11	≥ 11	≥ 10	≥ 10	≥ 10	≥ 10	≥ 10	≥ 10
Main Motor Power	kW	4	4	5.5	7.5	7.5	7.5	7.5	7.5
Net Weight	kg	3000	3600	4600	4800	6180	7720	6050	7400
Outline Size (L×W×H)	mm	2500×1900 ×2240	2950×1920 ×2240	3100×1890 ×2200	3120×1910 ×2300	3820×1925 ×2300	4650×1925 ×2300	3190×1945 ×2420	3790×1945 ×2420

Model(WC67Y/MB7)		100T/4000	125T/2500	125T/3200	160T/2500	160T/3200	160T/4000	160/6000
Bending Capacity	KN	1000	1250	1250	1600	1600	1600	1600
Bending Length	mm	4000	2500	3200	2500	3200	4000	6000
Between Columns	mm	3350	1850	2550	1950	2540	3140	4800
Throat Depth	mm	320	320	320	330	330	330	330
Slide Stroke	mm	130	130	130	200	200	200	200
Stroke Adjustment	mm	100	100	150	150	150	150	150
Max. Shut Height	mm	390	390	390	465	465	465	465
SPM	min-1	≥ 10	≥ 10	≥ 10	≥ 6	≥ 6	≥ 6	≥ 6
Main Motor Power	kW	7.5	7.5	7.5	11	11	11	11
Net Weight	kg	8400	6100	7300	8900	9720	11160	18600
Outline Size (L×W×H)	mm	4590×1945 ×2420	3190×1945 ×2420	3790×1935 ×2420	3300×2225 ×2560	4100×2250 ×2560	4800×2250 ×2560	6400×2250 ×2960

Model(WC67Y/MB7)		200T/3200	200T/4000	200T/6000	250T/3200	250T/4200	250T/5000	250T/6000
Bending Capacity	KN	2000	2000	2000	2500	2500	2500	2500
Bending Length	mm	3200	4000	6000	3200	4200	5000	6000
Between Columns	mm	2550	3260	4800	2540	3140	4000	5000
Throat Depth	mm	350	350	350	400	400	400	400
Slide Stroke	mm	200	200	200	250	250	250	250
Stroke Adjustment	mm	150	150	150	180	180	180	180
Max. Shut Height	mm	450	450	450	500	500	500	500
SPM	min-1	≥ 3	≥ 3	≥ 3	≥ 3	≥ 3	≥ 3	≥ 3
Main Motor Power	kW	15	15	15	18.5	18.5	18.5	18.5
Net Weight	kg	11440	13400	21300	13840	15320	17100	18600
Outline Size (L×W×H)	mm	3750×2180 ×2825	4450×2180 ×2825	6420×2180 ×2900	3840×2250 ×2920	4840×2250 ×2920	5640×2250 ×2980	6420×2250 ×2980

Model(WC67Y/MB7)		300T/4000	300T/5000	300T/6000	400T/4000	400T/6000	500T/4000	500T/6000
Bending Capacity	KN	3000	3000	3000	4000	4000	5000	5000
Bending Length	mm	4000	5000	6000	4000	6000	4000	6000
Between Columns	mm	2900	3900	4900	3140	5000	3050	4760
Throat Depth	mm	400	400	400	400	400	400	400
Slide Stroke	mm	250	250	250	320	320	320	320
Stroke Adjustment	mm	180	180	180	220	220	220	220
Max. Shut Height	mm	535	535	535	600	600	630	630
SPM	min-1	≥ 3	≥ 3	≥ 3	≥ 2.5	≥ 2.5	≥ 2.5	≥ 2.5
Main Motor Power	kW	22	22	22	37	37	37	37
Net Weight	kg	24400	27100	29100	30100	41100	42000	47600
Outline Size (L×W×H)	mm	4400×2250 ×3115	5400×2250 ×3115	6400×2250 ×3520	4800×2625 ×3700	6800×2650 ×3900	4200×4500 ×4760	6200×4500 ×4760
