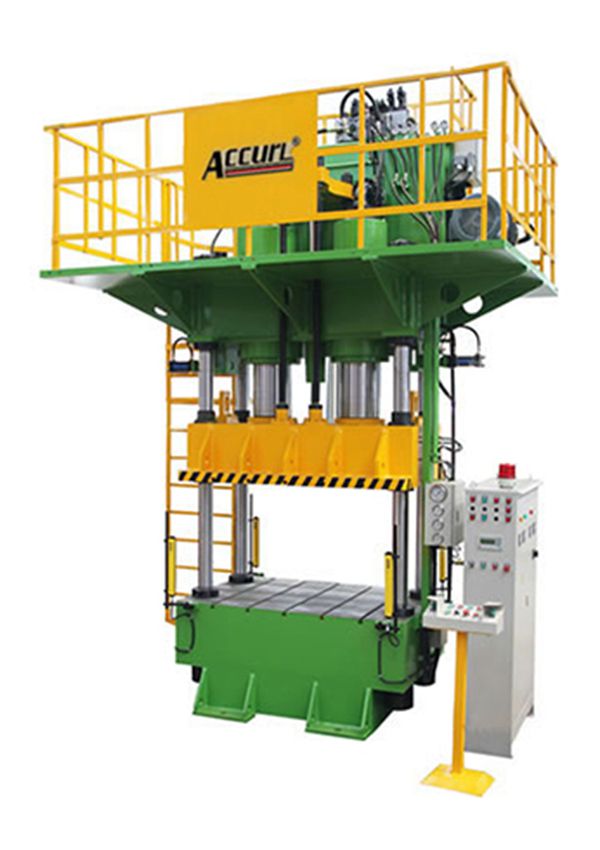

Four Column Hydraulic Press HBP-500T/DDH

Four Column Hydraulic Press HBP-500T/DDH
Characteristics
  • Adopt advanced Taiwan TWOWAY cartridge valve hydraulic circuit with little fault, minor reversing impact and high reliability.
  • Oil cylinder is made of alloy cast steel with precision grinding, which ensures reliable performance in high pressure condition.
  • Four columns are made of high strength alloy steel with hard chromium plated surface featuring good wear-resistance.
  • The main hydraulic and electric parts adopt brand-name components from Japan, France, Germany and Taiwan, so the machine enjoys high reliable performance.
  • The slide has fast speed and high productive efficiency.
  • Designed with adjustable drawing speed, the machine is applicable for various thickness metalworking and deep drawing.
Request a Quote
High Reliability
  • Protective fence and the safety interlock to ensure the operation safety. Have a movable single-hand pedal switch.
  • The entire equipment totally security (according to EN292:1994, EN60204:1994 and NR12) and defined as Level 4 of safety.
  • Intrinsic hydraulic safety valve block with redundant control and dynamic monitoring carried out by a security interface.
  • Right side protection: vertical door, pneumatic actuating, made of aluminium frame and polycarbonate transparate plates.
Applications

Stretching/drawing and forming of metal sheets, such as tableware, kitchen utensils, metal shell of motor and electric appliance, lamp house and more.
Shaping, stamping, drawing and edge cutting of metal and non-metal parts.

Specifications
Model(YL32/HP)
YL32-63
YL32-100
YL32-160
YL32-200
YL32-250
YL32-250A
YL32-315
Press Capacity kN 630 1000 1600 2000 2500 2500 3150
Ejecting Force kN 190 190 190 280 280 280 630
Return Force kN 120 165 210 240 400 400 600
Slide Stroke mm 500 500 560 710 710 710 800
Ejecting Force mm 200 200 200 200 200 200 300
Max. Shut Height mm 800 800 900 1120 1120 1120 1250
Slide
Speed		 Idle Stroke mm/s 100 120 100 120 130 160 100
Pressing mm/s 8-16 7-15 4-10 5-12 4-10 4-10 5-12
Return mm/s 85 90 70 95 60 60 60
Ejecting
Speed		 Eject mm/s 55 75 75 80 80 80 55
Return mm/s 105 140 140 145 145 145 145
Bolster LR mm 580 690 800 1000 1120 1800 1260
FB mm 500 630 800 940 1000 1200 1160
Outline
Size		 LR mm 2500 2500 2550 2650 2800 3600 3500
FB mm 1430 1430 1430 1350 1400 1400 1500
Above Floor mm 3220 3250 3210 3800 3950 4290 4600
Main Motor Power kW 5.5 7.5 11 15 15 15 22
Weight kg 2800 3700 6500 9000 10300 16000 14000
Model(HP)
YL32-315A
YL32-400
YL32-500
YL32-500A
YL32-500B
YL32-630
YL32-630A
Press Capacity kN 3150 4000 5000 5000 2500×2 6300 6300
Ejecting Force kN 630 630 1000 1000 1000 1000 1000
Return Force kN 600 500 900 900 400×2 850 850
Slide Stroke mm 800 800 900 900 900 900 900
Ejecting Force mm 300 300 350 350 350 350 350
Max. Shut Height mm 1250 1250 1500 1500 1500 1500 1500
Slide
Speed		 Idle Stroke mm/s 90 100 100 100 150 100 130
Pressing mm/s 5-12 4-10 7-15 7-15 7-15 5-12 5-12
Return mm/s 60 70 80 80 90 85 85
Ejecting
Speed		 Eject mm/s 55 55 75 75 75 75 75
Return mm/s 145 145 170 170 170 170 170
Bolster LR mm 900 1250 1400 2200 2200 1600 2200
FB mm 900 1250 1400 1600 1600 1600 1600
Outline
Size		 LR mm 3150 3500 3900 4800 4800 4510 4900
FB mm 1500 1600 2150 2250 2250 2250 2250
Above Floor mm 4500 4850 5200 5700 5600 5400 5700
Main Motor Power kW 22 22 2×22 2×22 2×22 2×22 2×22
Weight kg 11000 16500 25500 35000 34000 33000 42000
Model(HP)
YL32-630B
YL32-800
YL32-1000
YL32-1000A
YL32-1600
YL32-2000
YL32-2000A
Press Capacity kN 3500×2 8000 10000 5000×2 2×8000 2×10000 6300×2+8000
Ejecting Force kN 1000 1000 1600 1600 1000×2 1600×2 1600×3
Return Force kN 450×2 1000 1370 900×2 2×2700 2×1300 850×2+720
Slide Stroke mm 900 1000 1000 1000 1200 1300 1600
Ejecting Force mm 350 350 350 350 350 500 500
Max. Shut Height mm 1500 1600 1600 1600 1800 1800 2000
Slide
Speed		 Idle Stroke mm/s 130 120 120 110 120 110 130
Pressing mm/s 5-12 5-12 5-12 5-12 4-9 4-9 4-9
Return mm/s 83 95 85 65 95 70 75
Ejecting
Speed		 Eject mm/s 75 95 75 75 70 60 65
Return mm/s 170 170 150 150 160 160 135
Bolster LR mm 2200 2200 1500 2500 2800 3200 4600
FB mm 1600 1600 1500 1800 2000 2200 2600
Outline
Size		 LR mm 4900 4800 4500 5100 5600 4500 6000
FB mm 2250 2400 2400 2400 2600 3200 3600
Above Floor mm 5600 5700 5700 6000 6200 7200 8000
Main Motor Power kW 2×22 2×30 3×22 3×22 3×30 3×37 3×37
Weight kg 40000 53000 53000 72000 110000 160000 250000
Configuration list
No. Item Standard MAKE High Standard MAKE
1 PLC Mitsubishi Siemens
2 Pump Motor WanNan/China top brand Siemens / Rexroth
3 Hydraulic Pump Anson/Taiwan, Yuken/Japan Siemens / Rexroth
4 Relief Valve Rexroth /Germany Atos/Italy, Rexroth
5 Directional Valve Rexroth /Germany Atos/Italy, Rexroth
6 Proportional Valve Rexroth /Germany Atos/Italy, Rexroth
7 Cartridge Valve Jeou Gang/Taiwan,SUN/USA SUN, Atos, Rexroth
8 Prefill Valve TAI COLN/Taiwan Atos/Italy, Rexroth
9 Electric Units Schneider/France Schneider/France
10 Light Curtain LNTECH with CE Mark LNTECH with CE Mark
11 Touch Screen(HMI) Weinview/Taiwan Siemens
12 Pressure Gauge SKON/Taiwan SKON/Taiwan
13 Hydraulic Manifold MADE IN TAIWAN MADE IN TAIWAN
No worse quality components are adopted in ACCURLPresses.
Technical Specifications

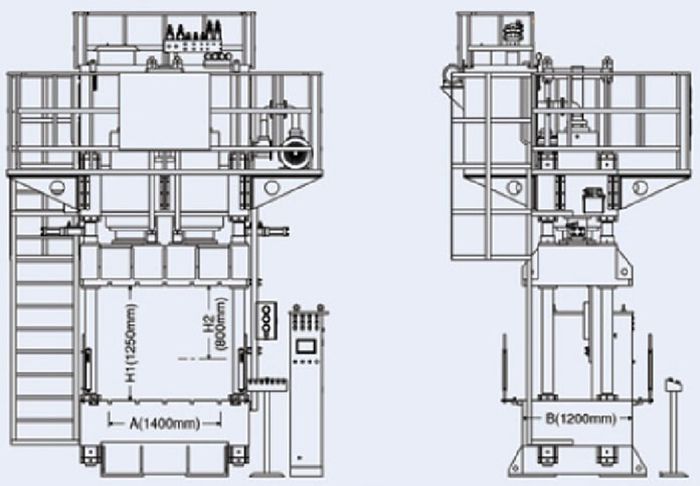

Four Column Hydraulic Press HBP-500T/DDH
  • H2 = Ram stroke
  • H1 = Maximum installation height
  • A = Table width
  • B = Table depth
  • E = Daylight between guides
  • F = Lateral throughway
  • G = Table height above floor
Seri-al No. Name Unit HBP-500T/DDH
1 Master cylinder pressure Tons 500
2 Slide Stroke H2 mm 900
3 Max. Daylight H1 mm 1500
4 Min. Daylight mm 600
5 Ejection Capacity Tons 500
6 Ejection Stroke mm 900
7 Upper Slide Fast Down mm/sec 100
8 Pressing Speed mm/sec 0.2÷2
9 Return Speed mm/sec 10÷50
10 Lower Slide Fast Up mm/sec 30
11 Return Speed mm/sec 100
14 Table Size (LR* FB) A/B mm 1250×1150
14 Cushion Size (LR* FB) mm 800×800
15 Worktable Height -G mm 780
16 Oil Tank Capacity L 430
17 Main motor kW 22
18 External dimensions (L×W×H) mm 2850×2250×5350
19 Machine weight Kg 32500
20 Hydraulic machine working video http://youtu.be/WrPoribRmLQ
