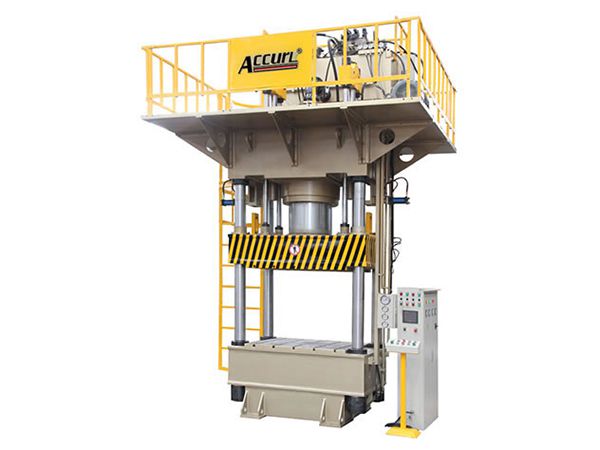

Four Column Deep Drawing Press HBP-40T~1600T

Four Column Deep Drawing Press HBP-40T~1600T
Request a Quote
Characteristics
  • Four column structure enjoys outstanding rigidity. Each press is designed through finite element structural analysis and optimization to assure high strength and rigidity.
  • This sheet metal machinery adopt cartridge valve integrated system characterized by little impact, reliable movement, little leakage and long service life; Enjoy automatic lubrication system for guide rails. (Such technology is introduced from Taiwan)
Request a Quote
  • Four columns are made of high strength alloy steel with hard chromium plated surface featuring good wear-resistance.
  • The main hydraulic and electric parts adopt brand-name components from Japan, France, Germany and Taiwan, so the machine enjoys high reliable performance.
  • The four-column hydraulic press adopt Mitsubishi PLC + Touch screen (HMI) integrated control. There are 3 operation manners, adjustable, manual and semi-automatic.
  • Designed with adjustable drawing speed, the four column deep drawing press is applicable for various thickness metalworking and deep drawing.
  • The hydraulic press fully meets CE safety requirements.
  • The slide has fast speed and high productive efficiency.
Applications

Stretching/drawing and forming of metal sheets, such as tableware, kitchen utensils, metal shell of motor and electric appliance, lamp house and more.
Specially for the following industries:
a. Automobile industry: steel ring, vehicle body, chasis, axle housing, fuel tank, door and many more.
b. Household appliance industry: components of air conditioner, refrigerator, washing machine, microwave oven, electric cooker and so on.
c. Kitchen ware industry: stainless steel utensil, gas cylinder, stainless steel sink, cooking bench, etc.

Optional
  • Moving bolster / die change trolley
  • Stamping dampers for shock proof while stamping
  • Trolley / moving bolster for easy die change
  • Cushion device for anti-shock while stamping
  • Water cooler / oil chiller
  • Mould hydraulic clamping
  • Air breathing design as per request
Specifications
Item(1) Unit
HBP-60T
HBP-100T
HBP-120T
HBP-160T
HBP-200T
HBP-250T
Capacity KN 400 600 800 1250 1600 2000
Return Force KN 110 210 250 300 300 350
Slide Stroke mm 400 450 510 680 710 710
Max. Daylight mm 500 650 760 900 1050 1150
Cushion Capacity KN 200 400 400 350 400 500
Cushion Stroke mm 200 200 250 250 250 250
Down Speed mm/s 150 160 200 220 140 180
Pressing Speed mm/s 11~22 7~16 8~19 9~20 8~19 9~20
Return Speed mm/s 130 100 140 120 90 160
Table Size ( LR* FB) mm 400×400 500×500 690×630 720×680 800×800 1050×940
Cushion Size ( LR* FB) mm 250×250 250×250 300×300 350×350 500×500 670×670
Outline Size LR mm 1380 2350 2380 2480 2500 2650
FB mm 850 850 900 970 1000 1250
H mm 2350 2350 2450 2450 2600 4550
Motor Power kW 4 5.5 7.5 7.5 11 15
Weight kg 2350 2750 3950 9550 7350 9850
Item(2) Unit
HBP-315T
HBP-400T
HBP-500T
HBP-630T
HBP-800T
HBP-1100T
Capacity KN 2500 3000 4000 5000 6000 8000
Return Force KN 400 400 450 450 1000 1000
Slide Stroke mm 720 800 800 900 1050 1000
Max. Daylight mm 1150 1250 1250 1500 1500 1800
Cushion Capacity KN 650 1000 1000 1300 1000×2 1500×2
Cushion Stroke mm 300 300 350 350 350 400
Down Speed mm/s 150 170 150 160 150 200
Pressing Speed mm/s 10~22 10~19 8~19 8~19 8~18 8~18
Return Speed mm/s 120 100 130 130 140 140
Table Size ( LR* FB) mm 1100×1000 1260×1160 1250×1250 1400×1400 1600×1600 2200×1600
Cushion Size ( LR* FB) mm 670×670 820×820 820×820 970×970 1120×1120 1570×1150
Outline Size LR mm 3250 3100 3150 3950 4150 5200
FB mm 1350 2100 2300 2500 2600 2800
H mm 4550 4750 5100 5300 5600 6450
Motor Power kW 100 120 180 200 250 300
Weight kg 14500 18500 22500 28500 42500 72350
