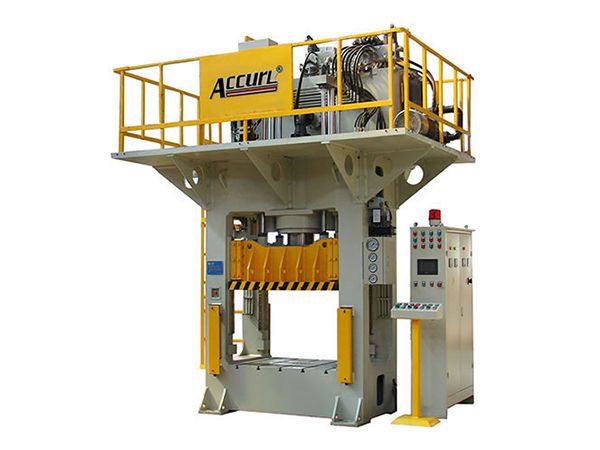

Four-Column Hydraulic Press (for SMC Molding)

The YL32 series of four-column hydraulic press is specially designed for creating sheet molding compounds, also known as sheet molding composites (SMC). Compared to sheet metal molding, SMC molding has a higher volume of output and is extremely cost effective. SMC's are usually glass or carbon fibers coated in in some type of resin. These materials are often very strong and have outstanding flexibility.

Request a Quote
Features
  • The SMC molding press features an independent electrical control system that is reliable and easy to maintain.
  • Optimized design with a 3-beam, 4-column structure. The design has a high performance to price ratio.
  • Reliable independent electrical control, audio-visual interface and convenient maintenance.
  • The cartridge valves used in the hydraulic control system help regulate flow control and keep the system running reliably with less hydraulic shock and fewer release points.
  • The four-column hydraulic press has a centralized semi-automatic control option in addition to hand adjustment to greatly increase production efficiency.
  • Fixed stroke forming process or fixed pressure forming is selected using a control panel, with pressure hold and time delay functions.
  • Operating force, no-load traveling and low-speed movement can be adjusted according to specific requirements.
Specifications
Model
YL32-63
YL32-100
YL32-160
YL32-200
YL32-250
YL32-250A
YL32-315
Capacity kN 630 1000 1600 2000 2500 2500 3150
Ejecting Force kN 190 190 190 280 280 280 630
Return Force kN 120 165 210 240 400 400 600
Slide Stroke mm 500 500 560 710 710 710 800
Ejecting Force mm 200 200 200 200 200 200 300
Max. Shut Height mm 800 800 900 1120 1120 1120 1250
Slide
Speed		 Idle Stroke mm/s 100 120 100 120 130 160 100
Pressing mm/s 8-16 7-15 4-10 5-12 4-10 4-10 5-12
Return mm/s 85 90 70 95 60 60 60
Ejecting
Speed		 Eject mm/s 55 75 75 80 80 80 55
Return mm/s 105 140 140 145 145 145 145
Bolster LR mm 580 690 800 1000 1120 1800 1260
FB mm 500 630 800 940 1000 1200 1160
Outline
Size		 LR mm 2500 2500 2550 2650 2800 3600 3500
FB mm 1430 1430 1430 1350 1400 1400 1500
Above
Floor		 mm 3220 3250 3210 3800 3950 4290 4600
Main Motor Power kW 5.5 7.5 11 15 15 15 22
Weight kg 2800 3700 6500 9000 10300 16000 14000
Model
YL32-315A
YL32-400
YL32-500
YL32-500A
YL32-500B
YL32-630
YL32-630A
Capacity kN 3150 4000 5000 5000 2500×2 6300 6300
Ejecting Force kN 630 630 1000 1000 1000 1000 1000
Return Force kN 600 500 900 900 400×2 850 850
Slide Stroke mm 800 800 900 900 900 900 900
Ejecting Force mm 300 300 350 350 350 350 350
Max. Shut Height mm 1250 1250 1500 1500 1500 1500 1500
Slide
Speed		 Idle Stroke mm/s 90 100 100 100 150 100 130
Pressing mm/s 5-12 4-10 7-15 7-15 7-15 5-12 5-12
Return mm/s 60 70 80 80 90 85 85
Ejecting
Speed		 Eject mm/s 55 55 75 75 75 75 75
Return mm/s 145 145 170 170 170 170 170
Bolster LR mm 900 1250 1400 2200 2200 1600 2200
FB mm 900 1250 1400 1600 1600 1600 1600
Outline
Size		 LR mm 3150 3500 3900 4800 4800 4510 4900
FB mm 1500 1600 2150 2250 2250 2250 2250
Above
Floor		 mm 4500 4850 5200 5700 5600 5400 5700
Main Motor Power kW 22 22 2×22 2×22 2×22 2×22 2×22
Weight kg 11000 16500 25500 35000 34000 33000 42000
Model
YL32-630B
YL32-800
YL32-1000
YL32-1000A
YL32-1600
YL32-2000
YL32-2000A
Capacity kN 3500×2 8000 10000 5000×2 2×8000 2×10000 6300×2+8000
Ejecting Force kN 1000 1000 1600 1600 1000×2 1600×2 1600×3
Return Force kN 450×2 1000 1370 900×2 2×2700 2×1300 850×2+720
Slide Stroke mm 900 1000 1000 1000 1200 1300 1600
Ejecting Force mm 350 350 350 350 350 500 500
Max. Shut Height mm 1500 1600 1600 1600 1800 1800 2000
Slide
Speed		 Idle Stroke mm/s 130 120 120 110 120 110 130
Pressing mm/s 5-12 5-12 5-12 5-12 4-9 4-9 4-9
Return mm/s 83 95 85 65 95 70 75
Ejecting
Speed		 Eject mm/s 75 95 75 75 70 60 65
Return mm/s 170 170 150 150 160 160 135
Bolster LR mm 2200 2200 1500 2500 2800 3200 4600
FB mm 1600 1600 1500 1800 2000 2200 2600
Outline
Size		 LR mm 4900 4800 4500 5100 5600 4500 6000
FB mm 2250 2400 2400 2400 2600 3200 3600
Above
Floor		 mm 5600 5700 5700 6000 6200 7200 8000
Main Motor Power kW 2×22 2×30 3×22 3×22 3×30 3×37 3×37
Weight kg 40000 53000 53000 72000 110000 160000 250000
