500w Fiber Laser Cutting Machine with IPG Fiber Laser

500w Fiber Laser Cutting Machine with IPG Fiber Laser

ACCURL fiber laser cutting machine - big innovation in technology, with exceptional reliability & high beam quality.

Advantages
1. With great flexibility, it is easy to cut non-ferrous metals, such as copper and brass. It shows exceptional quality.
2. Low production and maintenance costs due to low power consumption. No requirements for resonator gas.
3. The fiber laser machine is suitable for marking, finishing and detailing the pieces to be cut.
4. Unbeatable high output of fine thickness pieces.
5. The machine is easy to install and fast to put into service.
6. High cutting speed for the materials with thicknesses less than 4mm.
7. With the fiber laser machine, the cutting speed for the material of thicknesses less than 6mm is 5. If using N2 when operating, the speed can be 5 times faster.
8. The compact design takes up minimal space, but with no size limitation. The approximate lifecycle is between 4.000 and 5.000 hours.
9. The exceptional efficiency of the fiber laser greatly reduced electricity consumption. This machine is 86% more energy efficient than the CO2 laser.
10. Lens only need to be changed once a year, within an “optional clean room” environmentally controlled area. The same lens can be used for treating all materials in any thickness.

Characteristics
1. High output power
2. High quality of laser beam
3. Less focus, large focal distance
4. Coefficient of efficiency over 30%
5. Compact, solid and easy to install
6. Low operation cost
7. Flexible and durable fiber optic cable
8. High electrical efficiency
9. Lifespan of the diodes over 100,000 hours
10. Low requirements for cooling

Technical Parameters
Model ECO-FIBER-2040 /IPG 500w Fiber
Transmitting system Precise ball screw transmitting
Laser power 500W
Max running speed 40/min
X/Y location precision 0.05mm/m
Power supply 380v 50Hz
X/Y repeated location precision ±0.05mm
Machine gross power < 10KVA
Running temperature 0°C-40°C
Running humidity < 90%
Max. accelerated speed 0.3G
Applied materials Thin mild steel, stainless steel and other kinds of metallic sheets;
Type IPG IPG IPG IPG IPG
YLS-500W YLR-700 YLR-2 KW YLR-3 KW YLR-4 KW
Output power 500 W 700 W 2000 W 3000 W 4000 W
Material
Mild steel 6 mm 8 mm 16 mm 20 mm 25 mm
Stainless steel 2,5 mm 3 mm 8 mm 12 mm 15 mm
Aluminum 2 mm 2.5 mm 6 mm 12 mm 12 mm
Brass 1 mm 2 mm 3 mm 8 mm 8 mm
Copper 1 mm 2 mm 3 mm 8 mm 8 mm
Galvanized steel 1 mm 2 mm 4 mm 10 mm 10 mm
Detailed Pictures

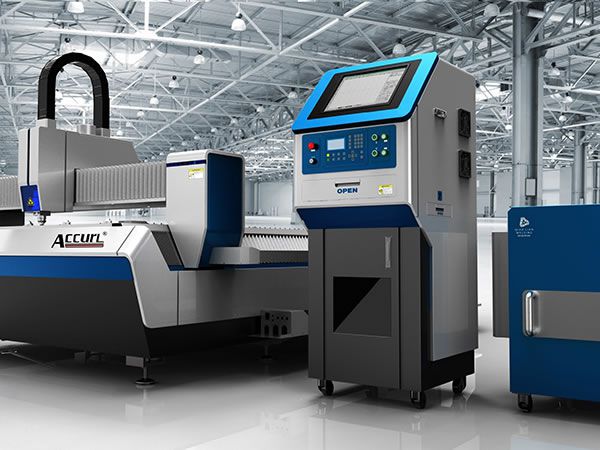

  • 500w Fiber Laser Cutting Machine with IPG Fiber Laser
  • 500w Fiber Laser Cutting Machine with IPG Fiber Laser
  • 500w Fiber Laser Cutting Machine with IPG Fiber Laser
  • 500w Fiber Laser Cutting Machine with IPG Fiber Laser
  • 500w Fiber Laser Cutting Machine with IPG Fiber Laser
  • 500w Fiber Laser Cutting Machine with IPG Fiber Laser
  • 500w Fiber Laser Cutting Machine with IPG Fiber Laser
