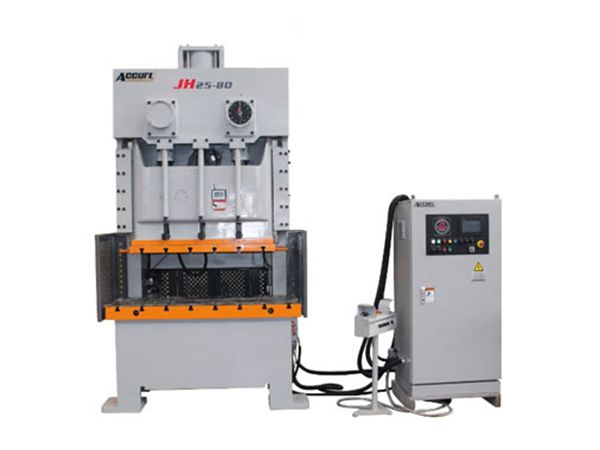

Automatic Punch Press for Metal Junction Boxes

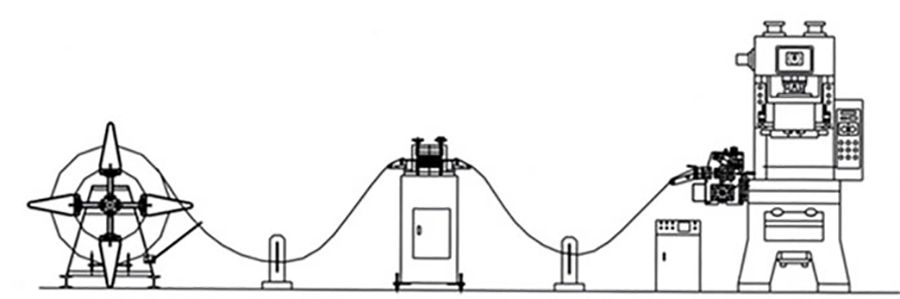

(with Metal Stamping Production Line)

C-frame press for electric metal box is a kind of C-frame punch press in which the frame resembles the shape of the letter "C". The C-frame punch press is a machine tool for processing materials by pumping fluid, which is some special hydraulic oil, in the slave cylinder with pressure. The hydraulic presses are widely used in industrial and mechanical fields.

Request a Quote

C-frame presses which are commonly used for mechanical work, featuring a simple and compact design. The maximum force of different machine models varies from 5 to 100 tons. But for the most popular single crank hydraulic press, the force is 10-20 tons, which is usually enough for the repairing the vehicles.

• The closed type integral welding body avoids the deformation of the press angle, improves the processing precision and extends the service life of die.
• Eight side guide rail slider, stable running and high precision. Dry pneumatic friction clutch, low noise, convenient maintenance.
• With hydraulic overload protection device, automatic emergency stop and press and die protection, the machine is easy to use.
• The automatic lubrication system and the circuit alarm system ensure that the machines can run smoothly.
• Thanks to the die height automatic control device and digital display device, it is convenient to adjust the mold.
• PLC electric centralized control, with emergency stop, inching, single, continuous operation modes.
• Optional photoelectric protection, drive output shaft, automatic feeding, and air cushion device.
