Double Crank Presses

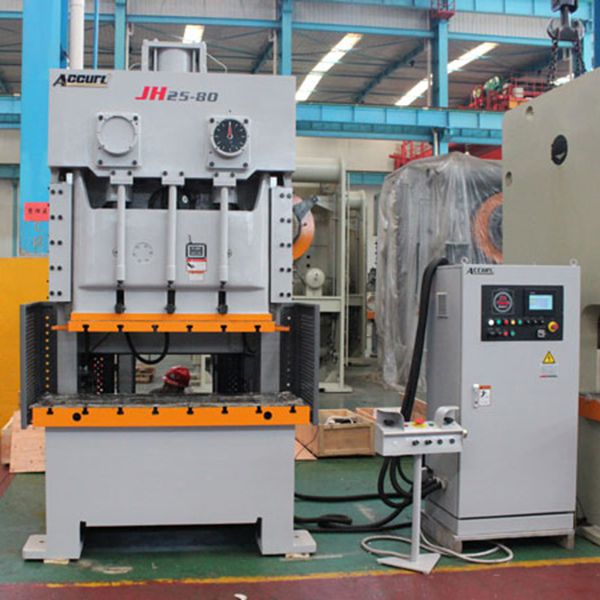

Open Back Double Point Power Press with high performance

Main Features of Open Back Double Point Power Press
1. JIS I accuracy.
2. Steel welded frame with high rigidity.
3. Double crankshafts reverse rotated to eliminate lateral force.
4. Motor with inverter.
5. Combined wet friction clutch.
6. Rectangular hexahedral lengthened gib.
7. Hydraulic overload protector.
8. Elec. adjustment with digital display.
9. Lifting balance cylinder.
10. Imported dual solenoid valve.
11. Elec. forced grease lubrication.
12. Balance cylinder: manual oil lubrication.
13. Integrated panel (elec. cam included).
14. PLC control.
15. Ejector.
16.Optional: air cushion, light curtain, automotive device.

Specifications of Open Back Double Point Power Press
Model CP2-80 CP2-110 CP2-160 CP2-200 CP2-250 CP2-315
Nominal kN 800 1000 1600 2000 2500 3150
Nominal Stroke mm 5 3 5 3 6 3 7 3 7 3.5 7 3.5
Slide Stroke mm 160 90 180 110 200 130 250 150 280 170 280 170
SPM Fixed (Optional) min-1 55 70 50 60 45 55 35 45 30 40 30 40
Variable 40-75 55-90 35-65 50-80 30-55 40-65 25-45 35-55 20-35 30-45 20-30 30-40
Max Die Height mm 350 400 450 500 550 550
Die Height Adjustment mm 80 90 100 110 120 120
Between Slide Center & Frame mm 310 350 390 430 470 480
Bolster Area (FB×LR) mm 600×1600 680×1880 760×2040 840×2420 920×2700 940×2800
Bolster Thickness mm 110 145 130 165 150 185 170 220 180 235 190 245
Slide Area (F·B×L·R ) mm 460×1200 520×1360 580×1500 650×1850 700×2100 700×2100
Shank Hole (Dia.×Depth) mm 3-φ60×60 3-φ60×70 3-φ60×75 3-φ60×85 3-φ60×95 3-φ60×95
Between Columns mm 1200 1450 1600 1900 2220 2400
Main Motor Power KW 11 15 18.5 22 30 37
Air Cushion (Option) Air Bag Type Eject Force×Stroke×Qty. KN 40×80×2 40×80×2 60×90×2 80×90×2 100×100×2 100×100×2
Cylinder Type Eject Force×Stroke×Qty. mm 40×60×2 55×70×2 80×80×2 100×90×2 125×100×2 125×100×2
Outline Dimension (F·B×L·R×H) mm 2260×1750 2400×2040 2650×2220 2850×2620 3080×2960 2880×3040
×3100 ×3260 ×3580 ×3980 ×4320 ×4320
Net Weight Kg 13000 16000 23190 30000 40000 42000
