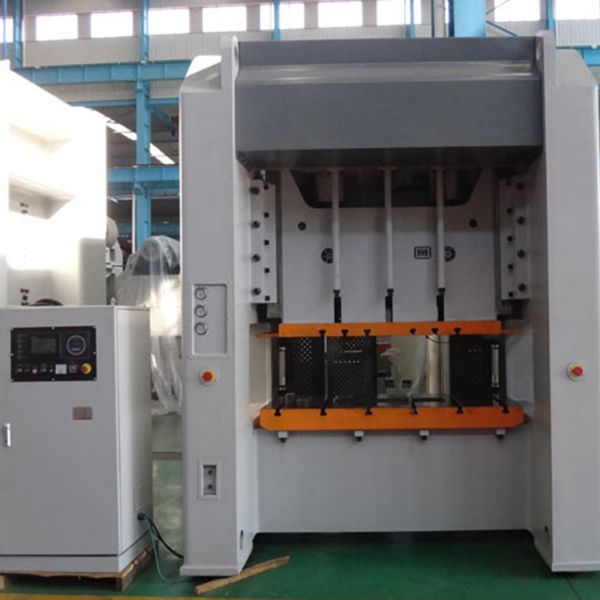

H-Frame Mechanical Press

H Type Double-Point Mechanical Press with high performance

H-Frame Mechanical Press
Request a Quote
Features
  • JIS I accuracy.
  • Steel welded frame.
  • Double crankshafts reverse rotated to eliminate lateral force.
  • Combined wet friction clutch.
  • Octahedral lengthened gib.
  • Hydraulic overload protector.
  • Elec. adjustment with digital display.
  • Lifting balance cylinder.
  • Imported dual solenoid valve.
  • Elec. oil lubrication.
  • Balance cylinder: manual oil lubrication.
  • Integrated panel (elec. cam included).
  • PLC control.
  • Ejector.
  • Optional: air cushion (air bag or cylinder type), light curtain, NC feeder, motor with inverter.
Specifications
Model
SP2-315T
SP2-400T
SP2-500T
SP2-630T
Nominal Force kN 3150 4000 5000 6300
Nominal Stroke mm 8 10 10 10
Slide Stroke mm 280 280 280 280
SPM Fixed min-1 25 20 18 18
Varoanle (Optional) 20-30 18-25 15-20 /
Max Die Height mm 600 650 700 800
Die Height Adjustment mm 120 120 120 120
Bolster Area (FB×LR) mm 1000×2400 1100×2500 1200×2900 1300×3000
Bolster Thickness mm 190 200 210 220
Slide Area (F·B×L·R) mm 900×2100 1000×2200 1100×2600 1200×2800
Shank Hole (Dia.×Depth) mm 3-φ70×95 3-φ70×95 3-φ80×100 3-φ80×100
Side Opening (F·B×H) mm 900×500 1020×550 1040×600 1200×700
Between Columns mm 2600 2700 3100 3300
Distance Between Bolster Surface & Floor mm 1120 1120 1150 1160
Main Motor Power KW 37 45 55 90
Outline Dimension (F·B×L·R×H) mm 3420×3500×4665 3620×3620×4650 4100×4060×4900 4100×4250×5800
(Above Ground)
Net Weight Kg 47000 51000 67500 95000
