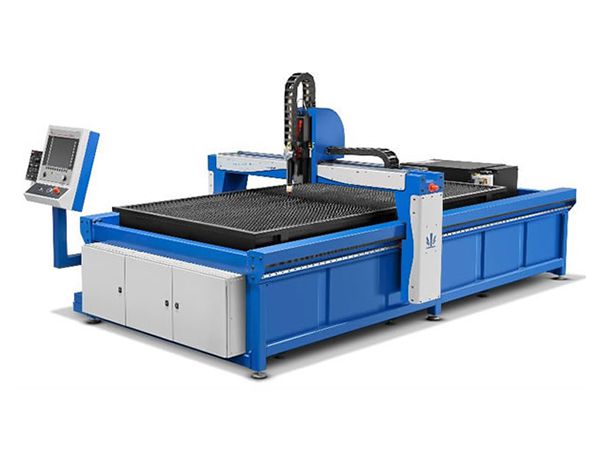

CNC Plasma Cutting Machine GSII-L Series

CNC Plasma Cutting Machine GSII-L Series

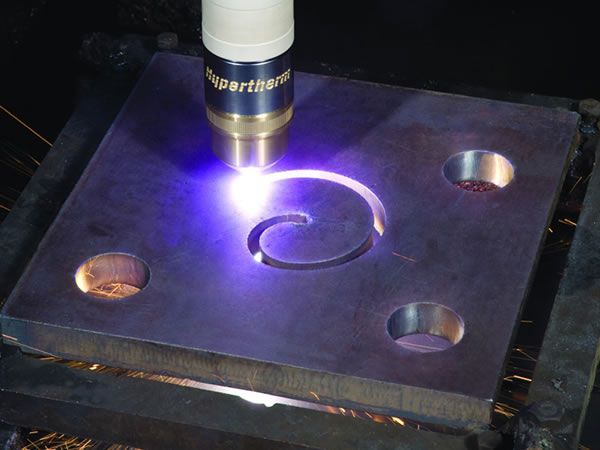

The GSII-L series plasma cutting machine is made in Europe and can provide a wide range of capabilities, including conventional high-speed plasma cutting, high definition plasma cutting and plasma marking.

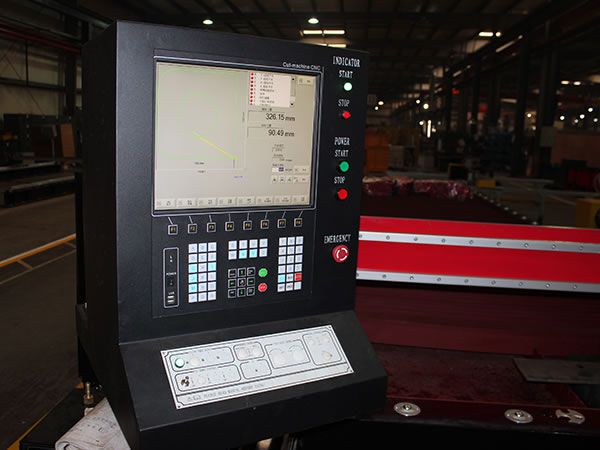

The machine is equipped with the Hypertherm Micro Edge Pro touch screen CNC system, in order to realize the functions such as Cutpro wizard, cutting optimization tips and built in process databank. The machine allows the operator to select the material type and thickness.

Standard Configuration
1. Portable monoblock structure with small floor space
2. Easy installation
3. Dual side AC servo motor with direct planetary gear box, helical rack and pinion drive system
4. Precision linear rail guide ways in X and Y axis

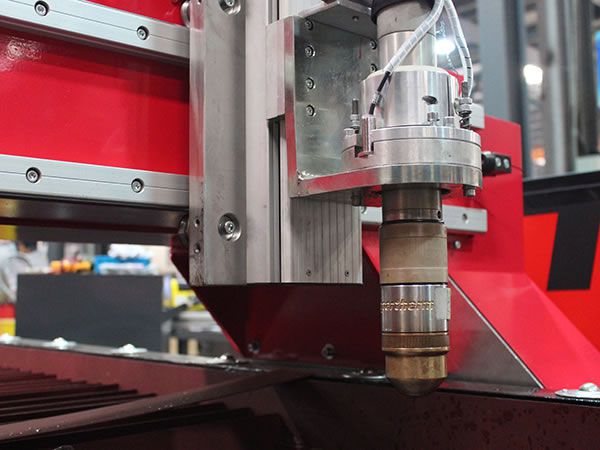

5. High speed torch lifter with automatic arc voltage height control
6. Fully enclosed hose and cable carriers
7. Hypertherm Micro Edge Pro CNC system

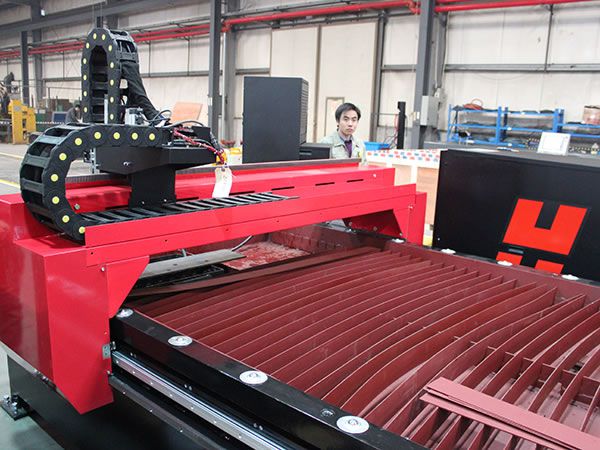

8. Integrated downdraft table with CNC programmable multi zone selection
9. Integrated dross bins
10. Magnetic torch anti-collision protection system
11. Laser pointer for plate alignment
12. CE safety specifications

Options
1. Hypertherm Edge Pro CNC
2. Portal extension
3. Tube Rotator for round pipes 30... 140 mm, square pipes 20x20mm ... 100x100 mm
4. Movable drawer to collect parts and dross
5. Available with Hypertherm Powermax series, Maxpro200 series and HPRXD series plasma sources
6. True Hole technology (with HPRXD auto gas plasma source)
7. Fume extraction filter

Technical Specifications:
Type Table Width Table Length Height Under Torch Width x Length x Height Table Height X Axis Y A xis Weight Max. Positioning Speed(X-Y) Total Power (without Plasma)
GSII-L mm mm mm mm mm mm mm kg m/min KW
30-15 1500 3000 150 1850x3420x1710 800 1000 2000 2050 30 4
30-15 1500 3000 150 2350x4420x1710 800 1500 3000 2550 30 4
40-20 2000 4000 150 2850x5420x1710 800 2000 4000 3300 30 4
60-20 2000 6000 150 2850x7420x1710 800 2000 6000 4600 30 4
Detailed Pictures
  • CNC Plasma Cutting Machine GSII-L Series
  • CNC Plasma Cutting Machine GSII-L Series
  • CNC Plasma Cutting Machine GSII-L Series
  • CNC Plasma Cutting Machine GSII-L Series
